Polytetrafluoroethylene Round Bars PP PA6 HDPE Nylon Rod Insulation Bronze Carbon Fiberglass Filled PTFE Rods

Product Description

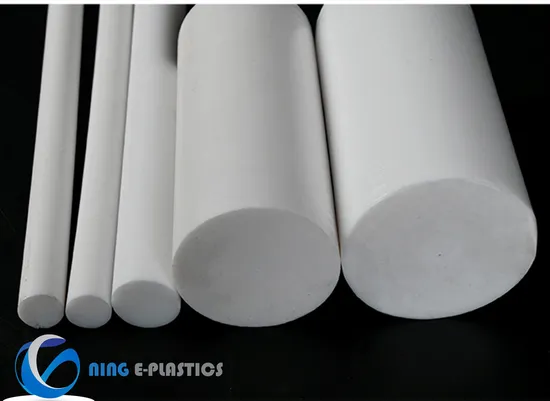

Polytetrafluoroethylene rods PTFE rod:OD:6-800mm,Length:100-3000mm
PTFE has the highest melting point and is capable of continued service at -180-260 C. PTFE is a melt processible resin capable of continued service at 204 C. PTFE products such as te flon gaskets are used as gasket and packing materials in chemical processing equipment; as electrical insulation for maximum reliabillity; and in bearings, seals, piston rings and other mechanical applications, especially those require anti-stick characteristics. PTFE has excellent thermal and electrical insulation properties. it has a low coefficient of friction.
Characteristics
High and low temperature resistance(-180ºC~+260 ºC)
Corrosion resistance(strong acid, strong alkali and etc)
Weather resistance
High insulation
High lubrication
Non adhesion
Non toxic etc
Application
Widely used in Gasket,Valve packing's,Diaphragms and mechanical seals .
linings of pipes ,valves ,Pumps and vessels .Chemical,Machinery fields .Electrical insulation parts .

PROPERTIES	STANDARD	UNIT	RESULT
mechanical property
Density		g/cm3	2.10-2.30
Tensile strength		Mpa	15
ultimate elongation		%	150
Tensile strength	D638	PSI	1500-3500
Produce Max.Temp		ºC	385
hardness	D1700	D	50-60
Impact strength	D256	Ft./Lb./In.	3
Melting poing		ºC	327
working Temp.	ASTM D648	ºC	-180 ~260
Elongation	D638	%	250-350
Deformation % 73 0F ,1500 psi 24 hours	D621	N/A	4-8
Deformation % 1000F,1500psi,24hours	D621	N/A	10-18
Deformation % 2000F,1500psi 24 hours	D621	N/A	20-52
lzod			6
Water absorption	D570	%	0.001
Coefficient of Friction		N/A	0.04
Dielectric constant	D150	Ω	1016
Dielectric strength	D257	Volts	1000
Coeffcient of thermal expansion 73 0F	D696	In./In./Ft.	5.5*10.3
Coefficient of thermal conductivity	*5	Btu/hr/ftz	1.7
PV at 900 ft./min	N/A	2500
Colour	*6	N/A	white
PTFE was widely used as resistant high & low temperature material,Corrosion-resistant materials,Insulation materials in the atomic energy,defense,aerospace,electronics,electrical,chemical industry,Machinery,instruments,meters,construction,textile,metal,surface treatment,pharmaceutical,medical.food and metallurgical smelting,and become irreplaceable products.

Company Profile

Detailed Photos

Packaging & Shipping
FAQ
1. Q: What color can you make?
A: Usually we can make the regular color, like green, blue, black, yellow, grey and so on. Or you can offer the pantone color number for reference to produce.
2.Q: What is your MOQ?
A: It depends on the drawing.
3. Q: What is your delivery time?
A: It depends on the volume, usually it is about 7 days.
4. Q: How can I get a sample?
A: Small size of sample are free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier account to us. Customized size of sample should be charged.
5. Q: What is your payment ?
A:30% T/T in advance, balance before shipment. Other terms negotiable.
