Surface Grinding Machine Factory Directly Sale

Surface Grinding Machine Factory Directly Sale

US$11,999.00
1-4 unit
US$10,999.00
5+ unit

Basic Info.

Model NO.
SGA3063AH
Type
Surface Grinding Machine
Processing Object
Metal, Ceramics Flat Surface
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001, SGS
Condition
New
Table Size
305X635mm
Max.Longitudinal Travel
765mm
Cross Tranal
340mm
Max.Distance From Spindle Center Totable
580mm
Magnetic Chuck Size
300X600mm
Speed of Table Longitudinal Movement
7-23
Auto Feed
0.1-8mm/Min
Rapid Speed
990mm/Min
Feed of Handwheel
0.02mm/Div
Grinding Wheel Speed
1450rpm, 1750rpm
Grinding Wheel Size
350X40X127mm
Spindle Motor
5.5kw
Hydranlic Motor
2.2kw
Cooling Pump Motor
0.125kw
Max. Loading Capacity of Table
270kg
Transport Package
Plywood Packaging
Trademark
OEM
Origin
China
HS Code
8460291100
Production Capacity
2000unit/Year

Packaging & Delivery

Package Size
2550.00cm * 2420.00cm * 2350.00cm
Package Gross Weight
2600.000kg

Product Description

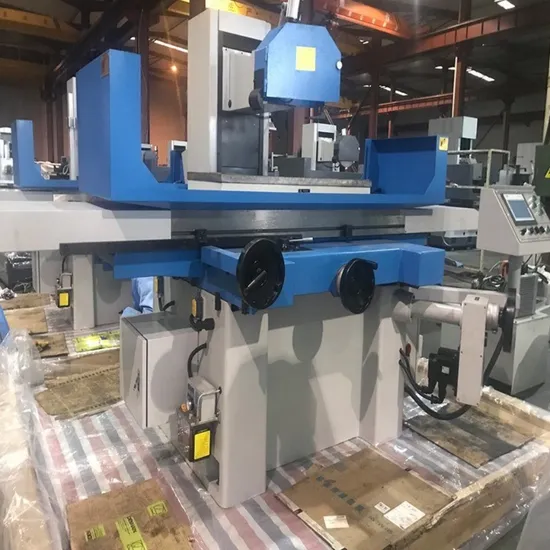

SGA3063AH Saddle Moving Surface Grinder Product Description
Structural Features

--Cross board layout
--High precision sliding screw
--High strength cast iron foundation
The machine adopts the cross plate layout, and the transverse guide rail is attached with teflon foft belt. Closed hydraulic system is adopted for the movement of the worktable. The forward and backward feed can be manually fed or the screw can be driven by the motor to automatically feed intermittently. The downward movement of the grinding head can be achieved by using the lifting motor for quick lifting(AHR) or the servo motor for quick lifting and automatic feeding(AHD), which can also be accomplished manually. The machine adopts precise angular contact rolling bearing, high rigid sleeve structure, the overall quality of the machine is stable, smooth operation.
Product Parameters

Description

Unit
SGA-3063AH
SGA-4080AH
SGA-3063AHR
SGA-4080AHR
SGA-3063AHD
SGA-4080AHD
Table size (w*L)
mm
305x635
406x813
Max.longitudinal travel
mm
765
910
Cross travel
mm
340
450
Max.distance from spindle center to table
mm
580
580
Magnetic chuck size
mm
300x600
400x800
Speed of table longitudinal movement
m/min
7-23
7-23
Table transverse movement
Auto feed
mm/min
0.1-8
0.1-8
Rapid speed
mm/min
990
990
Feed of handwheel
mm/div.
0.02
0.02
Wheelhead vertical movement
Auto feed
mm/stroke
0.005/.001/0.02/0.03/0.04/0.05(only for AHD model)
Rapid speed
mm/min
460 (only for AHR/AHD model)
Feed of handwheel
mm/div.
0.005
Grinding wheel
Speed
rpm
1450(50hz);
1750(60hz)
1450(50hz);
1750(60hz)
Size (OD*W*ID)
mm
350x40x127
350x40x127
Spindle Motor
kw
5.5
5.5
Hydralic motor
kw
2.2
2.2
Cooling pump motor
kw
0.125
0.125
Elevating motor
kw
-------(AH mode)
0.25(AHR mode)
0.5 (AHD mode, servo motor)
Cross feed motor
kw
0.04
0.04
Max.loading capacity of table
(include magnetic chuck)
kg
270
500
Total rated power
kw
9
9
Height of machine
mm
1890
1890
Floor space (L*W)
mm
2900x2200
3600x2400
Gross weight
kg
2600
3500
Package dimension (LxWxH)
mm
2350x2220x2150
2850x2270x2180

Hot Products
Company Profile
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
