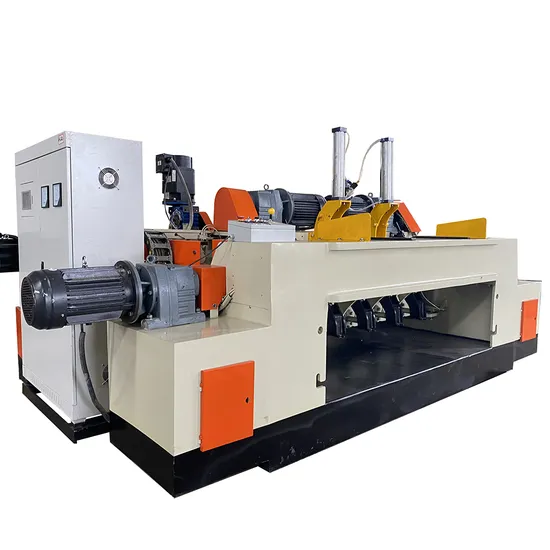

4FT 8FT Auto Plywood Veneer Peeler Wood Veneer Peeling Machine Wood Veneer Peeling Lathe for Plywood Production Line

Product Description

Automatic Plywood Core Veneer Peeling lathe Wood Log Peeling Woodworking Machine Product Description
Brief Description:
1.With Speed adjust system
2.With Automatic electrical lubrication system.
3.Automatic knife gap adjustment system
4.Thickness tolerance <= + 0.05 mm, both veneer sides are smooth.
5.Servo motor bring ball screw to feed, linear guide.
6.With the knife box which make the disassemble very easy.
7.Hydraulic system.
8.Japan Mitsubishi servo motor, PLC control, both ensure great performance. Product Parameters

Model	2700 veneer peeling machine-new model
Max. log length	2600mm
Max. log diameter	700mm
Veneer thickness	0.5-4mm
Veneer tolerance	+/-0.05mm
Residue wood diameter	25-40mm based on log diameter
Single roller	178mm
Double roller	200mm
Total power (60kw)	Single Roller : R87 reducer , 15kw*1; Double Roller : R87 reudcer, 11kw*2Feeding motor: R87 reducer, 15kW; Blade motor: RV120 reducer, 4kw.Conveyor Motor: RV 120 reducer, 4KW
Peeling speed	0-100m/min(adjustable)
Dimension	3200*2100*1700mm
Weight	12000kgs
Auto knife gap adjustment	yes
Automation	fullly automatic
Remote Control System	yes

Related Machines
Packaging & Shipping

After Sales Service
GTCO Machinery Service:
Pre-sale service: 1) Listen to customer needs;
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4) Offer the professional advice to customer to confirm the final selection;
5) Support site visits to factory;
In-sale service:
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China);
4) Assist buyers to install and debug equipment (overseas);
After-sales service:
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance;
5) Update the latest industry information in a timely manner;
