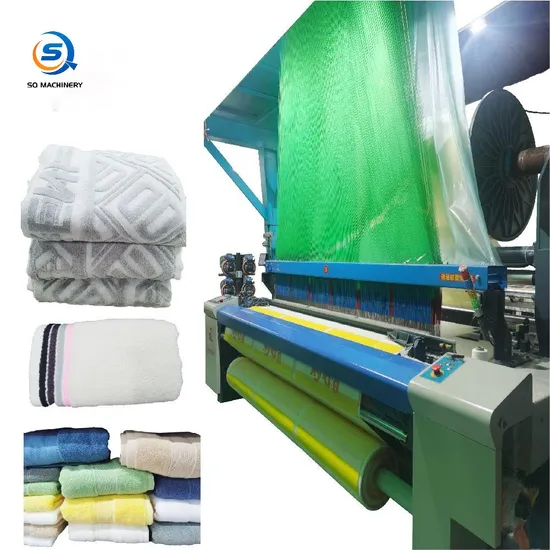

Tsudkoma Model Terry Towel Electronic Jacquard Air Jet Loom-Made in China

Product Description

Product Description
Tsudkoma ZAX9200 model terry towel loom,simple structure,easy to operate,high speed and lower machine cost if compare with Itema.
We follow up Tsudkoma technique,reed movement to make pile.Very stable to make hand towel or bath towel.
SQ930M air-jet terry towel loom features a comfortable and easy operation. It improves operator comfort through the height reduction of the warp end position (During the loom leveling, the warp passes the heald wire and the pathway from the heald wire eye to the cloth-fell from the top surface of the back-rest.) An easy operation of all basic functions is achieved through use of an HD colorful touch screen human-computer interface
Terry towel air jet loom with Staubli Dobby
Terry towel Jacquard Loom

Product Parameters

Air jet loom Main Configuration(We will give price according it)

1.Working width: ¨ 210 ¨230 ¨260 ¨280 ¨300 ¨320 ¨ 360 Final Towel Fabric width:

2.Shedding: ¨ Cam ¨ Dobby ¨ Jacquard (Cam or Dobby brand¨ NP,¨BINTIAN,¨STAUBLI, Jacquard brand¨S&S ¨WUMU ¨OTHER BRAND)

3.Heald frame Qn'ty ¨4¨ 6 ¨ 7 ¨8 ¨ 10 ¨ 12 ¨ 14 ¨ 16 (Jacquard hook:¨1344¨ 2688¨ 5120 ¨6188 )

4.Weft feeder Qn'ty: ¨ 2 ¨ 4 ¨ 6 Brand ¨ SL ¨ROJ or other brand

5.Fabric edge:¨ Leno Selvedge

6.Warp beam Qn'ty : ¨1.5 ¨ 2¨ 3 And warp flange dia(Ф:800mm,914mm 1000mm) Normally ground beam 800mm,Upper beam 1000mm

7. Cloth roller Qn'ty: ¨2 ¨3 ¨wind on loom ¨jumbo roller

8.Reed quantity ¨1 ¨ 2 ¨ 3

9.Wire healds Qn'ty ¨6000 ¨8000 ¨10000 ¨15000 Type þS.S Harness Qn'ty¨5000 ¨7000 ¨10000

10.Dropper Qn'ty ¨6000 ¨8000 ¨10000 ¨15000 Type:¨open ¨close

Why choose our terry towel air jet loom??
1.Because of Quality
*Nozzle,Pressure regulating valve,Solenoid valve all SMC,Japan(original,not duplicate)
*We use original staubli,not duplicate,if customer need duplicate,we will tell the truth.
*Metal material and machining accurate is high(same with Rifa supplier)
*Bearing:import quality
2.Compare with Rifa air jet loom
*High output one machine,one month can produce 4-5tons cotton yarn. each tons yarn,we can save 500RMB=73.5USD.(Less yarn waste) One loom one month can save US$73.5*4=294USD
*Low maintainess cost our spare parts sales price is lower than Rifa(we also can supply all spare parts for Rifa air jet loom)
3.Compare with Rifa or Lanado rapier loom
*Higher speed Air jet loom average speed is 450R.P.M(if yarn quality is good,500 R.P.M is also no problem) Rapier loom average speed is 270R.P.M *Lower machine price Air jet loom price is lower than High speed rapier loom
4.Long term quality warranty: We guarantee 2 years Other company guarantee 1 year
5. Full production line service
Company Profile
SQ machinery,professional manufacturer and exporter for textile machine.
What we produce?
All kinds of air jet loom
All kinds of water jet loom
Low speed rapier loom
All kinds of warping machine
All kinds of sizing machine
What service we supply?
Hometextile whole production line
Medical gauze whole production line
Terry towel whole production line
Special fabric production line

Name	Model	Usage	Advantages
air jet loom	SQ930	weave all fabric	High speed,low price
air jet loom	SQ910	calico or gauze fabric	low price
air jet loom	SQ710	gauze fabric	lower price
air jet loom	SQ720	glassfiber fabric	high output
air jet loom	SQ930M	terry towel	high output,low price
air jet loom	SQ810	velvet fabric	high output,low price
water jet loom	SQ822	filament heavy fabric	low price
water jet loom	SQ408	light weight fabric	high speed
water jet loom	SQ8100	high quality polyester fabric	good quality
water jet loom	SQ857	PP PE fabric for tarpaulin	good quality,low price
warping machine	SQ-YGA	Direct warping,for gauze	good quality
split warping machine	SQ188	for mono yarn	low price
sizing machine	SQ-HT	cotton yarn,blend yarn,short fiber yarn	good quality,low price
sizing machine	SQ-JSD	filament yarn	good quality
shemagh rapier loom	SQ788	shemagh yashmagh Arab scarf weaving machine	more experience
Jute fabric rapier loom	SQ799	Jute fabric weaving machine	more experience
medical gauze production line	SQ-GL	weaving-bleaching-final packing	more experience
terry towel production line	SQ-TL	warping-weaving-dyeing-sewing	save customer time
cotton/rayon fabric production line	SQ-FL	warping-sizing-weaving-packing	save customer engergy
leno air jet loom	SQ-910L	leno fabric weaving machine	more experience
Longitudinal Sewing Machine	SQ-T02	bath towel & hand towel length hemming	best price
cross hemming machine	SQT03	bath towel & hand towel width hemming	best price
O/E Cotton yarn 16S-40S	SQ-C	Special for gauze production	best price
100% viscouse yarn	SQ-V	MURATA VORTEX SPINNING	best price
100% rayon fabric	SQ-F	Made by ourself	good quality & best price

Industry fabric Production Line
Medical gauze Production line
Special loom
