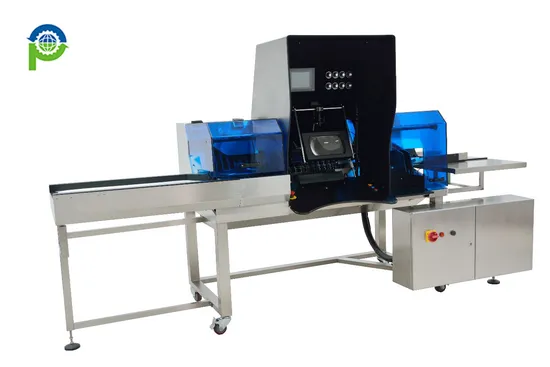

Inspection Machine for Ampoule Vial Small Glass Bottle

Product Description

Operation
1.feeding system
The feeding system of YJ-90A adopt in-feed star wheel combine working with in-feed conveyor belt
segmented in-feed star wheels - operators do not have to lift heavy parts anymore, change parts are easier to store, retrofit for new formats will be faster.
2.The discharge & reject system of YJ-90A adopt reject star wheel combine working with auto reject detection unitAuto reject detection unit is with infrared sensors. Finger breaks infrared curtain, PLC memorizes position of faulty container for rejection.
shape reject channel will work with auto reject detection unit. Good product & defect product will be separately discharged in two different ways.
3.Machine is PLC control & touch screen interface. The touch screen has function of count of good, count of defect, count of total, error alarm & stop in case selected defect products goes into good product stream. PLC and touch screen brand are all OMRON, JAPAN.
Technical parameters

Application/usage	Ampoule
Nos. of operator	1 person
Max. capacity	120 bottles/min
Mode of operation	Continuous or intermittent
Power supply	220Vor110V
Working height	900 mm±50 mm

Layout
Paching&Shipping
