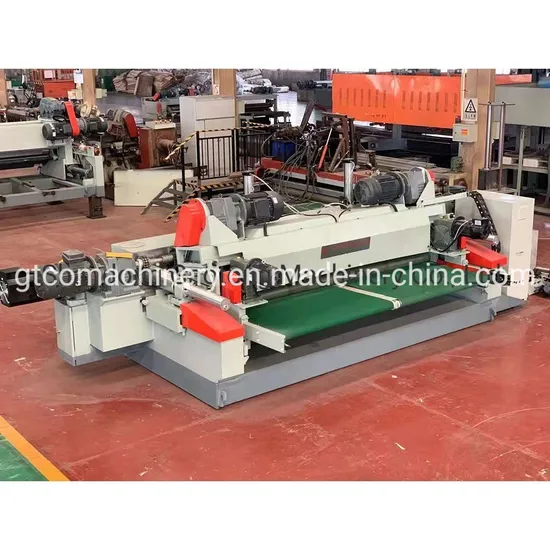

High Speed Wood Veneer Peeling Lathe for Plywood Production

Product Description

High Speed Wood Veneer Peeling Lathe for Plywood Production
Product Parameters

GTRD2600mm Veneer Peeling machine
Length of Log(mm)	970-2700mm
Max Processing Log Diameter	Φ550
Min Residual wood Diameter(mm)	Φ35
Single and double roll diameter(mm)	Single rollerΦ125 , Double RollerΦ125
Working thickness Range(mm)	0.4-4.0
Peeler Blade size (mm)	2900*180*16
Main Line Speed (m/min)	0-80m/min and adjustable
Total Motor Power(kw) (45KW )	Single Roller : Φ125mm, R87 reducer ,7.5kw*2; Double Roller : Φ125mm,R87 reudcer,15kw Feeding motor: R87 reducer, 11kW; Blade motor: RV120 reducer, 4kw. Conveyor Motor: RV 120 reducer, 4KW
Overall Size(L*W*H) mm	6200* 2250*1650
Weight (KGS)	About 8000KGS

1300mm Veneer Peeling Machine Plywood Making Machine
Wood log max.Dia.	450mm
Left log dia.	30mm veneer thickness
Core veneer thickness	1-3.6mm knife specification
Peeling knife	1400x180x18mm
Overall dimension	3600x2200x1300mm
Weight	4.5tons
Total power	25.5kw

Product Description
1.Working steady : The blade base is fixed . double roller moving and steady the guide rail . increase the working stability and veneer quality . It is also convenient to transfer veneer
2.Reduce wear : Adopt double screw nut , reduce the worn of nut and can adjust the screw gap according to the wearing capacity , promise the machine working in high precision condition
3.Key technology : Special cams structure to adjust the pressure from single roller to log , it is changed according to log diameter , simplicity and strict , keep the pressure and knife gap in the same . This is the key technology for this machine
4. High performance
Adopt high-performance universal coupling , increase the strength and reduce the working noise drastically . not easy to broken
5.Heavy bearing :Adopt heavy bearing , increase the bearing strength and reduce the bearing quantity . so can down the broken risk
Detailed Photos

Packaging & Shipping

Company Profile
WHO WE ARE
GTCO Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city.
After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold nationwide , exported to Asia , Europe , Africa and Oceania... etc .
WHAT WE DO
We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc.
2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you !
Welcome to visit us.
WHY CHOOSE US
1.Customized equipment, especially of unusual size, press, etc.
2.High quality and technical support
3.So rich international-trade experience for machinery.
4. 7*24hour on line service.
