China Manufacturer Stone Crusher Machine Price Ore Hammer Crusher for Sale
Basic Info.
Model NO.
customizable
Crushing Capacity
10-99t/h
Color
Customizable
Outlet Size
18-48mm
After-Sales Service
Provide
Keywords
Stone Hammer Crusher
Motor Power
15kw
Capacity
200-500 T/H
Inlet Size
150×250mm
Product Name
Hammer Crusher
Material
Carbon Steel
Feeding Size
Depending on Model
Output Size
Depending on Model
Transport Package
Standard Export Packing
Specification
PC300*400
Trademark
Sanyuantang
Origin
China
HS Code
847420900
Production Capacity
100 Set Per Month
Product Description

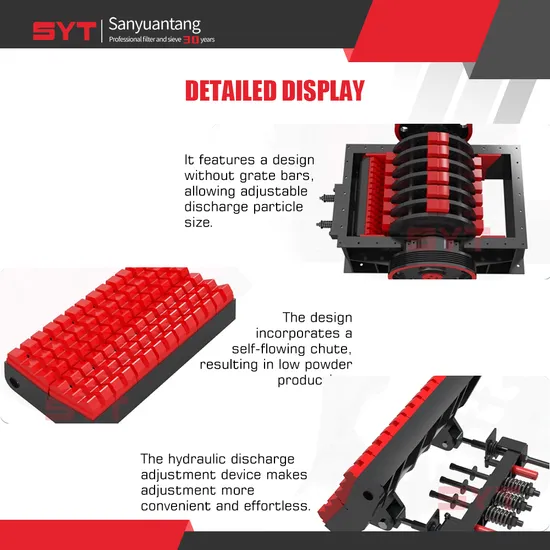

rinciples of work and motionThe main working component of this machine is a rotor equipped with hammers (also known as hammerheads). The rotor consists of a main shaft, discs, pins, and hammers. The electric motor drives the rotor to rotate at high speed within the crushing chamber. Material is fed into the machine through the upper feed opening and is crushed by the impact, striking, shearing, and grinding action of the high-speed hammers. Below the rotor of the hammer crusher, there is a screen plate. Particle sizes smaller than the screen holes pass through the screen plate and are discharged, while coarse particles larger than the screen holes are retained on the screen plate to continue receiving impact and grinding from the hammers before eventually being discharged out of the machine through the screen plate. This equipment allows for adjustment of the grate bar clearance according to user requirements, changing the discharge particle size to meet the different needs of various users. It is characterized by its simple structure, large crushing ratio, and high production efficiency.
