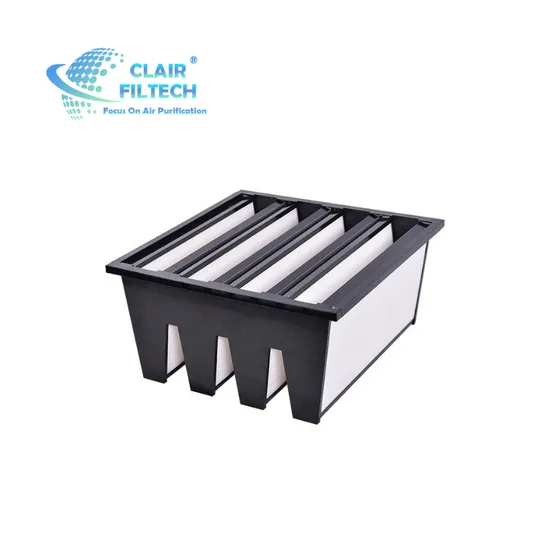

ABS Plastic Frame HEPA Compact V-Bank Plastic Frame Mini Pleat Air Filter

Product Description

Product Description
Detailed Photos

Application
It is suitable for the final stage of filtration in various ventilation equipment, dust removal equipment, and air supply systems with
high requirements for cleanliness.

Features
Large filtration area and large dust holding capacity
Uniform pleat spacing.
High air flow and low resistance.
Water and moisture resistance.
Resistance to temperature ≤ 50°C.
Humidity resistance (relative humidity) ≤ 100%

Product Parameters

V Bank HEPA Filter - Box type
Model	Size (mm)	CMH	I.N.P (Pa)	F.N.P (Pa)	Filter object (μm)	EFF. (%)	Filtration Class	Filtration Area (m2)
VB8805M-5V08	610*610*292-5V	2200/4200	<65/120	<450/600	90≤E<95	0.5	F8	24.40
VB8805M-4V08	610*610*292-4V	1800/3600	<65/120	<450/600	90≤E<95	0.5	F8	19.52
VB8205M-4V08	610*305*292-4V	1000/2000	<65/120	<450/600	90≤E<95	0.5	F8	9.87
VB8805M-5V09	610*610*292-5V	2200/4200	<75/135	<450/600	95≤E	0.5	F9	24.40
VB8805M-4V09	610*610*292-4V	1800/3600	<75/135	<450/600	95≤E	0.5	F9	19.52
VB8205M-4V09	610*305*292-4V	1000/2000	<75/135	<450/600	95≤E	0.5	F9	9.87
VB8805M-5V10	610*610*292-5V	2200/4200	<90/160	<450/600	85≤E<95	0.3	E10	24.40
VB8805M-4V10	610*610*292-4V	1800/3600	<90/160	<450/600	85≤E<95	0.3	E10	19.52
VB8205M-4V10	610*305*292-4V	1000/2000	<90/160	<450/600	85≤E<95	0.3	E10	9.87
VB8805M-5V11	610*610*292-5V	2200/4200	<110/190	<450/600	85≤E<95	0.3	E11	24.40
VB8805M-4V11	610*610*292-4V	1800/3600	<110/190	<450/600	85≤E<95	0.3	E11	19.52
VB8205M-4V11	610*305*292-4V	1000/2000	<110/190	<450/600	85≤E<95	0.3	E11	9.87
VB8805M-5V12	610*610*292-5V	2200/4200	<140/230	<450/600	99.5≤E<99.95	0.3	E12	24.40
VB8805M-4V12	610*610*292-4V	1800/3600	<140/230	<450/600	99.5≤E<99.95	0.3	E12	19.52
VB8205M-4V12	610*305*292-4V	1000/2000	<140/230	<450/600	99.5≤E<99.95	0.3	E12	9.87
VB8805M-5V13	610*610*292-5V	2200/4200	<200/300	<450/600	99.95≤E<99.995	0.3	H13	24.40
VB8805M-4V13	610*610*292-4V	1800/3600	<200/300	<450/600	99.95≤E<99.995	0.3	H13	19.52
VB8205M-4V13	610*305*292-4V	1000/2000	<200/300	<450/600	99.95≤E<99.995	0.3	H13	9.87
VB8805M-5V14	610*610*292-5V	2200/4200	<220/330	<450/600	99.995≤E<99.9995	0.3	H14	24.40
VB8805M-4V14	610*610*292-4V	1800/3600	<220/330	<450/600	99.995≤E<99.9995	0.3	H14	19.52
VB8205M-4V14	610*305*292-4V	1000/2000	<220/330	<450/600	99.995≤E<99.9995	0.3	H14	9.87

Packaging & Shipping
Company Profile
Guangzhou Clair Filtech Co., Ltd. is one of the best international enterprises which are specialized in the products of filtration and purification in China.
With advanced technique and continuously innovative and powerful science and technique research, our products have been sold to various countries in the world such as Japan, Korea, Australia, the United States and Southeast Asia.
Our main products are as follows: Coarse Filter Cotton, Ceiling Filters, Floor Filter, Heat Resistant Air Filters, all kinds of Pockets, Plank, Foldaway Filters, Primary Filter, Secondary Filters, HEPA Filters, Activated Carbon Filters, and all different kinds of clean products and equipment used in the cleaning cabin and ventilation system of HVAC (heating & ventilation application).
Based on the managing tenet of "quality first and sincere service", we have got the trust from our large quantities of customers.
Our company is located in Baiyun District of Guangzhou City, we welcome new and old clients and friends to come to our company.
Our Advantages
Why Choose Us
1.Support OEM & ODM
2.Competitive Prices
3.High Quality
4.Over 10 years of Manufacturing Experience
5.On Time Delivery Service
6.Quick Response
7.Small Batch and Sample
8.Large Order Discount
9.One-stop Shipping Service
10.Professional After Sale Service Certifications
FAQ Q1: Are you the factory?
We have many cooperating factories here, with competitive price.

Q2:Can you send Free Sample?
Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q3:What's your MOQ ?
A:Different standard of MOQ for different goods.

Q4:Can the dimension be customized?
Yes, the dimension can be customized.

Q5. What is the payment terms.
The payment terms is 30%-50% as deposit, balance be paid before shipment.

Q6. What payments can be accepted?
T/T
Q7. What are your minimum order?or Can we have one sample order or small order to try?
Normally, 500sets/item,less quantity is available but cost is higher if you can accept. We warmly welcome any trial order.
Q8. Can we have our logo to be printed on the units or packaging?
Yes!OEM print is available.
Q9. How many days can I get the product if we placed purchase order?/What is the lead time?
In general,3-7 working days for Sample and Ready Stock;30-40 days for production order after receiving order deposit.
Q10. Do you offer discounts for bulk orders?
Yes, There have breakdown price for breakdown quantity, email us to speak to a representative.

Q11. Could you arrange the shipment?
Sure, we have the shipping agents, we could arrange the shipping by SEA, by AIR, as customer requests.
