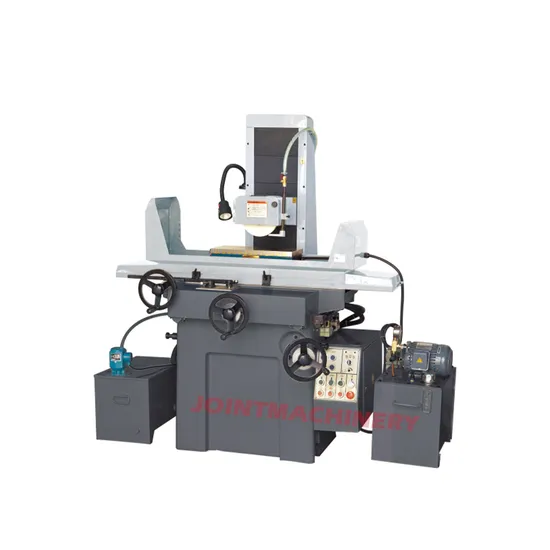

Flat Surface Grinder High-Quality Grinding Machine for Various Metal Applications

Product Description

1.Highly Rigid Structure
The base column structure of this machine showcases exceptional strength, robust design, and unwavering stability. Its major castings are crafted from high-strength, wear-resistant cast iron. Through multiple stages of aging treatments, any internal stress is completely eradicated. The guide rails, renowned for their superior wear-resistance, ensure remarkable precision and longevity.
2.High Quality Grinding Head
This machine is equipped with a high-precision spindle system, sourced from a prestigious Taiwanese manufacturer with a global reputation. The spindle boasts P4-level ultra-precision bearings, maintaining a taper end deflection within a mere 2µm. It features a V-3-grade low-vibration motor, enabling high-speed rotation with minimal noise and zero vibration. With a substantial load-bearing capacity, it is perfectly suited for heavy-duty cutting and diverse molding grinding tasks.
3.High-Precision Feed Structure
The machine's front and rear, left and right slides are lined with premium imported TUR CITE-B wear-resistant guide rail sheets and are precisely scraped to guarantee superb accuracy. The column and spindle head guide rail are matched with high precision, rendering this machine ideal for precision forming grinding of various grooves.
4.Automatic Lubrication System
Upon spindle activation, the lubrication pump automatically initiates, ensuring comprehensive lubrication of all screws and sliding surfaces. This process effectively minimizes wear, preserving accuracy and prolonging the machine's operational lifespan.
5.Safe Dust Protection System
Dust-proof features are installed between each moving component: sheet labyrinth rubber guards protect the guide rails, ensuring the interior remains dust-free and water-free, safeguarding the machine's longevity.

1. Grinding Head
The manual grinding head is facilitated by a rapid lifting mechanism, featuring a built-in motor. This design endows the spindle with exceptional rigidity and precision.
2. Electromagnetic Chuck
This feature is user-friendly, time-saving, and boasts continuous operation capability for over 20 hours.
3. Metal Hand Wheel
The high-precision metal feed handwheel offers effortless control, achieving a grinding model accuracy of 0.002MM.
4. Double V Guide Rail
Employs a longitudinal double V guide rail and a lateral single V flat guide rail. The hydraulic drive system ensures exceptional precision.
5.Resin Sand Cast Iron Body
The castings are engineered for excellent stability and strength. They undergo artificial aging treatment to guarantee precise dimensional accuracy in the final product.
Flat Surface Grinder High-Quality Grinding Machine for Various Metal Applications

Model			200M
Table size		mm	410*160
X axis travel		mm	430
Y axis travel		mm	200
Table side way			Ball-slide way
Max distance from spindle center to working table		mm	445
Auto crossward feed			-
Crossward feed of hand wheel		1 Rev	4
		1 Div	0.02
Auto vertical feed			-
Vertical rapid moving feed			-
Vertical feed of hand wheel		1 Rev	2
		1 Div	0.005
Rotation speed	50HZ	rpm	2880
	60HZ	rpm	3360
Grinding wheel size			Φ200×(6-20)×31.75
Spindle motor			1.5*2
Hydraulic motor			-
Crossward driven motor			-
Vertical driven motor			-
Coolant pump motor			0.12*2
Dust-clean motor			0.75*2
Dimension (L*W*H)		mm	1610*1120*1645
Net weight		kg	780
