Fullwell EDFA 3220W Xgspon CATV Wdm EDFA 32 Ports 20dBm Per Port

Product Description

Product Description "Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet the challenges faced by operators, Huawei's next-generation large-capacity distributed intelligent OLT platform MA5800 provides a single service board that supports XGS-PON, XG-PON, and GPON mixed access application scenarios.
Fullwell is a certified solution partner of Huawei. In order to cater to the integration of a trip play network and move towards 10G bandwidth, Fullwell has developed the product of XG (S ) -PON + CATV EDFA high power EDFA. Its CATV signals and XGS-PON, XG-PON, and GPON signals can be accessed on one fiber at the same time, helping operators to create an all-optical, automated, and intelligent FTTH integrated access network, continuously improve user experience, enable quality broadband, help operators CATV and home broadband become possible while reducing the cost of operator investment.
FWAP-XGS series is the latest optical transmission system equipment of XG (S) -PON + CATV FTTH / FTTP triple play network integration, and it is the function of combining OLT XG (S) -PON broadband signal and CATV 1550nm optical signal after amplification. Input ports: 1 CATV + 32 XGS-PON / XG-PON and GPON, combined 32 outputs: 1310 / 1490nm & 1270 / 1577nm + 1550nm, of which the total output power range of 1550nm is 27 ~ 45dBm. Multiply output ports can be customized. Compatible with XG (S) -PON / ONU, such as Huawei, ZTE, and Fiberhome, without losing data, and has a high-cost performance.
Product feature
Top quality: Adopt JDSU, - a multi-mode high-power pump laser and the power is optimized through software, which makes the system achieve excellent CNR AND minimize the NF of EDFA.

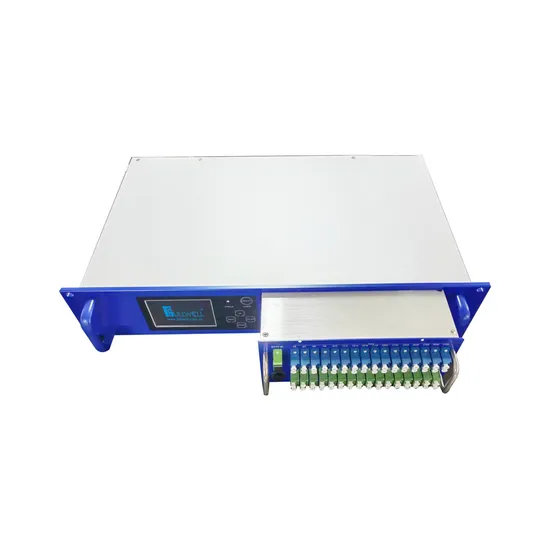

Reliability: 19 ″ 2U chassis, large screen with touch screen panel, built-in high-performance hot-pluggable dual switching power supply with Chassis automatic heat dissipation control.
Intuitive: JDSU, - multi-mode pump laser is the most expensive component in the device. The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
Network management Interface: The web transponder is in line with the national standard and compatible with the SCTE HMS standard, achieving a WEB monitoring function.
Customizable 2X1 optical switch: built-in optical path selector, 2 optical inputs, can be set to manual or automatic mode for the selection of the main and redundant path.
Integrated WDM of XGS-PON, XG-PON, and GPON, optical port: XGS-PON, XG-PON, and GPON input: SC / UPC, 1 port of 1550nm CATV optical input port: SC / APC, XG (S) -PON + CATV 1550nm EDFA output optical port: SC / APC. 64/128 multiply output ports can be customized. Product Parameters

Items		Unit	Performance Index
Optical Operating Wavelength		nm	1535~1565
Input Optical Power Range		dBm	-10~+10
Noise Ratio		dB	≤5.0 (0 dBm,@1550nM)
Gain Flatness		dB	<±0.3
Optical Power Output Stability		dB	<±0.5
Polarization Sensitivity		dB	<0.2
Polarization Mode Dispersion		Ps	<0.5
Input End Pump Leakage Power		dB	≤-30
Output End Pump Leakage Power		dB	≤-30
Optical Input, Output Return Loss		dB	>45(APC Stepped Face)
Pump Operating Number		PCs	2~5
Rated Output Power		dBm	27~45
Linker(IN)		-	SC/APC
Linker(OUT)		-	SC/APC
Power Supply/Consumption		V/W	AC90~265 or DC-48/20
Operating/Storage Temperature		ºC	-20~65/-30~70
Operating/Storage Humidity		%	5~90
Case Size		"	19×16×3.5
Network Management Connector		/	RJ45(following national network management standard, supports WEB)
	XG(S)- PON Wavelength	nm	1310/1490 & 1270/1577
	XG(S)- PON Linker	/	SC/UPC
	Uplink optical ports	pcs	32
	Output ports	Pcs	32
	XG(S)- PON Insertion Loss	dB	<1.2
	1550 Port Insertion Loss	dB	<0.7
	Optical isolation between CATV&OLT	dB	40
Optical Switch	Insertion Loss	dB	<1
	Harass	dB	<-60 (isolation between A and B)
	Switch Time	ms	<10
	Switched Power Threshold Range	dBm	-5~10

Product Model Series

Model Number	Total Output Power dBm(mW)	Output No.	Each Output Power (dBm)
FWAP-XGS-16x14	28dBm(640mW)	16	14
FWAP-XGS-32x10		32	10
FWAP-XGS-16x15	29dBm(800mW)	16	15
FWAP-XGS-32x11		32	11
FWAP-XGS-16x16	30dBm(1000mW)	16	16
FWAP-XGS-32x12		32	12
FWAP-XGS-16x17	31dBm(1300mW)	16	17
FWAP-XGS-32x13		32	13
FWAP-XGS-16x18	32dBm(1600mW)	16	18
FWAP-XGS-32x14		32	14
FWAP-XGS-16x19	33dBm(2000mW)	16	19
FWAP-XGS-32x15		32	15
FWAP-XGS-16x20	34dBm(2500mW)	16	20
FWAP-XGS-32x16		32	16
FWAP-XGS-16x21	35dBm(3000mW)	16	21
FWAP-XGS-32x17		32	17
FWAP-XGS-16x22	36dBm(4000mW)	16	22
FWAP-XGS-32x18		32	18
FWAP-XGS-16x23	37dBm(5000mW)	16	23
FWAP-XGS-32x19		32	19
FWAP-XGS-32x20	38dBm(6000mW)	32	20
FWAP-XGS-64x16		64	16
FWAP-XGS-32x21	39dBm(8000mW)	32	21
FWAP-XGS-64x17		64	17
FWAP-XGS-32x22	40dBm(10000mW)	32	22
FWAP-XGS-64x18		64	18
FWAP-XGS-32x23	41dBm(13000mW)	32	23
FWAP-XGS-64x19		64	19
