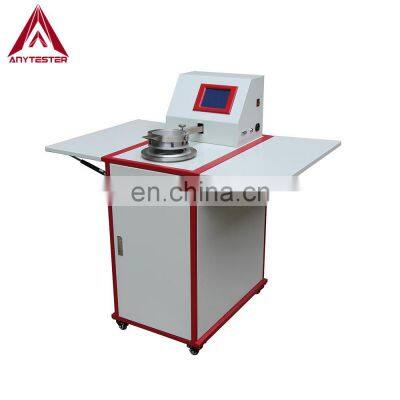

ISO 9237 ASTM D737 Lab Digital Fabric Air Permeability Tester with Touch Screen Control

Product Description

Product Description
Product Description
HY0461D Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.
Standard

ISO 9237, 7231, 5636	ASTM D737	BS 5636
DIN 53887	JIS L1096	GB/T 5453, 13764
Note: For more standards, please contact us

Specification

Model	HY0461D
Perforated plate	Manual
Measuring range	0.1~12000mm/s(L/m2.s)
Units	mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s
Measuring accuracy	≤±2%
Test pressure	1 ~ 4000Pa
Test area/test rig	20cm2 (5cm2, 20cm2(≈Φ50mm), 25cm2, 38cm2(≈Φ70mm), 50cm2, 100cm2 optional)
Perforated plate	Φ0.8mm, Φ1.2mm, Φ2.0mm, Φ3.0mm, Φ4.0mm, Φ6.0mm, Φ8.0mm, Φ10.0mm, Φ12.0mm, Φ16.0mm, Φ20.0mm
Specimen thickness	≤12mm
Power supply	AC220V±10%, 50Hz
Power	2KW
Dimensions	1070×670×1080mm
Weight	75kg

Details & Features
★ Touch screen control, LCD display★ Professional software on PC for online operate★ Adopt high precision low pressure difference sensor, more accurate★ Easy to operate, no need to cut sample
★ Provided with 11 pcs of perforated plate to determine different textile
★ 7 units selectable, mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s★ Several test heads can be selected, the standard configuration is 20m2
★ Chinese and English display language selectable★ Modified mechanical process, it’s more beautiful and durable.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
