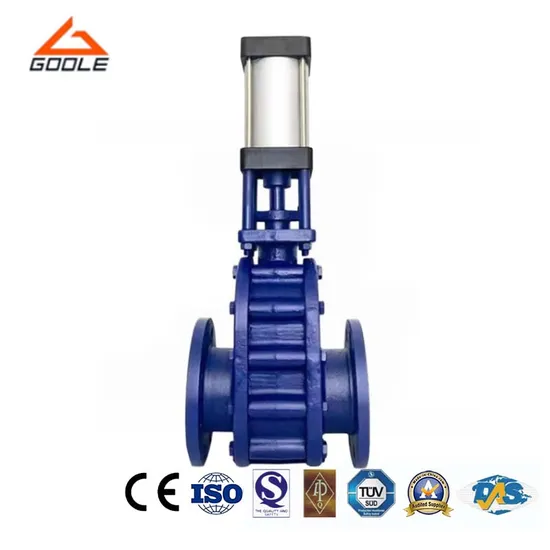

Pneumatic Parallel Sliding /Double Disc/ Ceramic Gate Valve (GAZ644TC) / Ball Valve / Check Valve / Inlet Valve / Discharge Valve/Feed Valve/Wear-Resistance

Product Description

Pneumatic Parallel Sliding /Double Disc/ Ceramic Gate Valve (GAZ644TC) / Ball Valve / Check Valve / Inlet Valve / Discharge Valve/Feed Valve/Wear-Resistance Product Description
Application Application
1. Design and Manufacture: GB/T 12224
2. Face to Face Dimension: Manufacturer's Standard
3. Flange Dimension: JB/T 79.1, ANSI B16.5 DIN 2543, JIS B2020
4. Inspection and Test: GB/T 9092
5. Material Standard: GB/T 12229 for Carbon Steel, GB/T 12230 for Stainless Steel
Specification Installation, Use & Maintenance:
1. Before Installation, it's necessary to clean the valve and remove possible defects caused in the transportation process.
2.Check carefully whether marks and the nameplate on the valve meet operating requirements.
3. This valve can be insstalled on pipelines at any angle.
4. This valve shall be fully open or fully closed in running and not be used as a throttle valve, or else its sealing surfaces will be washed and get worn faster.
5. For Long term storage, it shall be stored in a dry and ventilated room whth periodic check to avoid rust.
6. Knocking shall be avoided in the transportation process. Product Features Structural Features:
1. Use a Cylinder as the actuator to drive the gate directly to move up and down, with fast opening/closing.
2. The double Gate adopt floating connection to produce reliable one-way seal under the medium pressure action. Also the floating connection can drive the gate to rotate up in opening/closing due to misaliginment of axial lines so that the friction grains between the valves' gate and seat are distributed evenly to produce no linear abrasion, thus improving its service life greatly.
3. Sealing surfaces of the valve's body and gate are lined with anti-wear ceramics, with excellent resistance to abrasion.
4. Being compact, it's easy for transportation, installation and maintenance.
Working Principle Working Principle
When the cylinder drives the gate to move downwards through the valve's stem, sealing surfaces of the valve's gate and body will be engaged to cut off the channel, namely, closing; the other way around is opening. Product Details Main Parts and Materials

Sr No.	Parts	Material	Sr No.	Parts	Material
1	Body	WCB	7	Middle Body	WCB
2	Disc	Ceramic	8	Packing	Flexible Graphite
3	Seat	Ceramic	9	Packing Gland	2Cr13
4	Stem	2Cr13	10	Bracket	Q235
5	Stud	35CrMoVA	11	Pneumatic Actuator	Aluminum Body
6	Nut	25

Product Parameters Main External and connecting Dimensions

DN	PN	L	D	D1	C	H	n-d
50	10	200	160	125	16	520	4-18
65		220	180	145	18	595	4-18
80		240	195	160	20	635	8-18
100		280	215	180	20	630	8-18
125		300	245	210	22	715	8-18
150		320	280	240	24	840	8-23
175		320	310	270	26	885	8-23
200		350	335	295	26	1155	8-23
250		400	405	350	30	1400	8-23
300		450	460	400	30	1800	12-23
