Automated Shuttle Shelving Operation Improves Storage and Retrieval Efficiency

Product Description

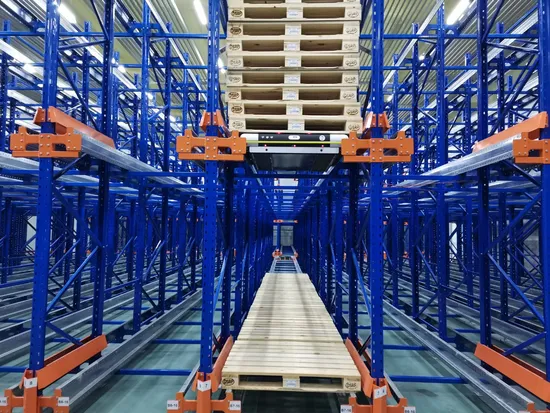

Radio Shuttle Car Industrial Racking Racks And Shelves For Warehouse Storage for intelligent shelf Radio shuttle with forklift and workers divides storage and transportation of cargo, and radio shuttle do the storage of cargo by wireless. Forklift and workers complete transportation of cargo. No need enter storage area, forklift works on the front of storage area , and the cargo will be taken to designated location by radio shuttle. Cargo storing instruction is sent through wireless remote controller by forklift operator, who can also terminate the action being executed. The first location on the front of rack is the location for forklift to pick and place cargo, and two working modes such as first-in-first-out and first-in-last-out can be selected.

FIFO FILO technical parameters

item		Basic data	Remark
Pallet		width:1200mm depth:1200mm	Compatible different size of pallets
Load capacity		Max 1500kg
move	speed	Vmax_empty:1.5m/s,Vmax_full:1.0m/s
	Accelerate	≤1.0m/S2
	Motor	Brushless servo motor 48VDC 600W	U.S.A Brand
	Servo driver	Brushless servo driver	ELMO
lift	Lift height	40mm
	Motor	Brush motor 48VDC 450W	EMP
positioning/ precision		move positioning: laser	Germany P+F/SICK
		Pallet positioning:laser	Germany P+F/SICK
		Lift positioning:approach switch	Germany P+F
Detection		Background suppression	Germany P+F/SICK
Control system		S7-200 PLC	Germany SIEMENS
Remote controller		Work frequency 433MHz,communication distance within 100 metres	Customized imported IMT
		Two-way communication with LED screen
		Work temp:-40ºC~+80ºC IP67 lever
Voltage supply		Lithium iron phosphate battery	Domestic
Battery parameters		48V,30AH,work time≥8h,charging time 3h, charging life:1000 times	Free of maintenance
Way of speed control		Servo control,Low-speed constant torque
Way of control		remote control
Noise		≤60db
Painting		frame(black),lift mechanism,battery cabinet and control cabinet RAL7035 (grey)
Environment temp.		temp: 0ºC~50ºC Humidity: 5% ~ 95%
Anti-collision		Polyurethane cushion and set sensors

Advanges of our Shuttle More higher technical capacity More higher compatibility and stability More Intelligence More higher safety

Company Information

A.Nanjing Xincheng Intelligent Storage Equipment Co.,Ltd founded in 2009, with more than 10 years experience in logistic industry, is a leading storage racking & warehouse shelving MANUFACTURE and provider for warehouse storage solution. B.Over 10 years In Europe, Southeast Asia, Australia market, We're proud to say that XinCheng is always providing first-class product to all customer. 100% quality, 100% service, 0 excuses C.We're specialized in design and production of Selective Pallet Racking , Drive in Racking, AS/RS System, Cantilever Rack, Mezzanine Platform, Radio Shuttle System, Longspan, etc. D.Xincheng provides ONE-STOP warehouse storage solution, including Design, Consultant, Manufacture, Installation, Technical Guidance and Maintenance.(All are free) E.This is Lili wan,Warmly welcome your visit to our factory in China! Hope we'll have a chance to work with you!

Questions You May Interesting : Q1:Does all racks produced by your company?
A1: Yes, we're a DIRECT MANUFACTURE with over 10 years experience, main products of us include Drive in racking,Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.

Q2: Where are you company located?
A2: Our factory is located in Jiangning District,Nanjing, Jiangsu, China, close to Nanjing Port and Shanghai Port.

Q3: Do you provide design drawing?
A3: We provides ONE-STOP warehouse storage solution, including Design, Consultant, Manufacture, Installation, Technical Guidance and Maintenance.(All are free)
Q4 How long of your warranty period?
A4: We afford 10-year warranty and lifetime insurance services of all racking products. Any quality issues that caused by quality of products, we'll provide free parts for replacement.

Q5: Are you able to provide installation service?
A4: We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work. Normally, we can offer solution for your problem through email, mob and video call within 24 hours. We do have installtion team in Vietnam and Australia etc.

Please feel free to contact with me before and after sales if there any issue you are concern about.
