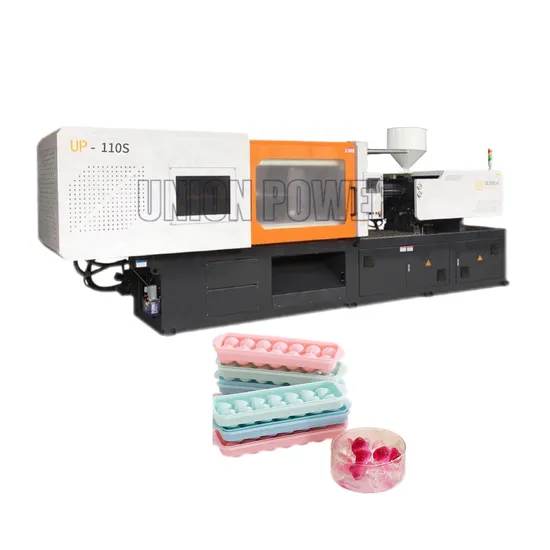

Union Power Ice Tray Injection Molding Machine 14grids Plastic Ice Mold Machine
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UP-110
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Weight
3t
Heating Power
7.5kw
Tank Volume
150L
System Pressure
16MPa
Transport Package
Film Packing
Specification
3.8*1.2*1.7
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Packaging & Delivery
Package Size
380.00cm * 120.00cm * 170.00cm
Package Gross Weight
300.000kg
Product Description
OverviewProduct Parameters
| Technical Parameters | Model UP-110T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 36 | 38 | 40 |
| Shot Volume (cm3) | 153 | 181 | 201 |
| Injection weight (g) | 138 | 163 | 181 |
| injection pressure (Mpa) | 170 | 144 | 130 |
| Screw speed (rmp) | 220 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1100 | ||
| Open stroke (mm) | 325 | ||
| Max Mold height (mm) | 380 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 360x360 | ||
| Ejector force (KN) | 33 | ||
| Ejector stroke (mm) | 90 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 11.5 | ||
| Heating power (KW) | 7.5 | ||
| Machine dimension (M) | 3.8x1.2x1.7 | ||
| Machine weight (T) | 3 | ||
| Oiltank cubage (L) | 150 | ||
Machine details
Why choose UP machine?
Packaging & Shipping
FAQ
