CE ISO Approved Blue Knitting Machine for Raschel Blanket Production

Product Description

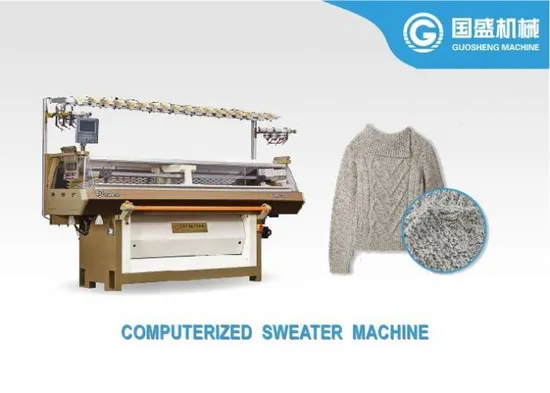

Discover the GSJX1-80: The pinnacle of modern knitting technology, revolutionizing the industry with its state-of-the-art design!
Embark on an unparalleled knitting adventure with the ultimate companion in the world of knitting machines!
Rely on Our Expert Technicians for Superior Quality and Unmatched Service in Knitting Machinery
Guosheng has been leading the industry for 30 years with relentless innovation and exceptional service, setting the gold standard in knitting technology.
As a globally acclaimed maker of knitting machines, we are dedicated to raising performance standards to new heights.
We collaborate with knitters to drive significant advancements and standardization in
the world's most sophisticated knitting machines.
Top Reasons to Choose Our Knitting Machines
Purchase now and enjoy free training on machine operation and pattern designing!
Guosheng's service philosophy focuses on comprehensive and considerate care, offering free training on machine operation,
as well as pattern designing at no additional charge for all esteemed customers.

SPECIFICATIONS FOR FLAT KNITTING MACHINE
MODEL	GSJX-1-80
GAUGE	14G
KNITTING SYSTEM	SINGLE SYSTEM SINGLE CARRIAGE
KNITTING WIDTH	80INCH
KNITTING SPEED	1.2m/s MAX.1.2M/SEC
KNITTING FUNCTION	TRANFER,TUCK,MISS,JACQUARD,INTARSIA,HIDE OR APPARENT SHAPING.
STITCH DENSITY	STITCH SYSTEM CONTROLLED BY STEPPING MOTOR,32 SECTION STITCH SELECTABLE,ADJUSTABLE SCOPE SUPPORTED BY SUBDIVISION TECHNOLOGY:0-650
RACKING	CONTROLLED BY AC SERVO MOTOR,RACKING WITHIN 2 INCHES AND WITH FINE ADJUSTIING FUNCTION.
DRIVE SYSTEM	SYNCHRONOUS BELT DRIVE,AC SERVO SYSTEM
NEEDLE SELECTION	CONTROLLED BY COMPUTER,ELECTRIC MAGNET NEEDLE CHOOSE SYSTEM WITH HIGH EFFICIENCY.
YARN CARRIER	1x8YARN CARRIERS ON EACH SIDE OF 4 GUIDE RAILS,SHIFTABLE ON ANY NEEDLE POSITION
TAKE DOWN ROLLER	PROGRAMMED INSTRUCTION CONTROLLED BY STEPPING MOTOR, 32 SECTION LEVELS SELECTION ADJUSTABLE AREA:0-100
PROTECTION SYSTEM	THE MACHINE WILL AUTOMATICALLY ALARM IF YARN BREAKING, FLOAT YARN,REWIND,END OF KNITTING,FAIL OF RACKING,NEEDLE BREAKAGE AND ERROR PROGRAMMING OCCUR ECT.
CONTROL SYSTEM	1,ADOPT LCD SCREEN,INPUT DEVICE:USB,SYSTEM MEMORY 256MB,A GREAT AMOUNT OF DESIGN FILES CAN BE STORED.2,MONITORING MENU,EACH KIND OF OPERATING PARAMETER,CAN BE SHOWN,AND THEY CAN BE ADJUSTED AT ANY TIME WHEN THE MACHINE IS RUNNING.3,DESIGN SYSTEM IS VISUAL AND EASY TO UNDERSTAND AND UPGRAD.4,MULTI LANGUAGE VERSION,THERE ARE CHINESE,ENGLISH ETC.
POWER	220V ,SINGLE-PHASE,HAVE MEMORIZING FUNCTION AT THE POWER-OFF MOMENT

This premium, highly efficient machine is essential for every serious knitter.
1) Optimized cam structure using advanced motor technology, dramatically increasing needle transfer speed.
2) Small carriage with a quick return mechanism, boosting productivity considerably.
3) Enhanced fabric flatness achieved through efficient collaboration with the yarn storage system.
4) Simple needle plate construction utilizing milling flute technology for high efficiency after heat treatment.
1. Carriage
High-speed rotating carriage servo,
featuring a 5.2-inch head that is 40mm
more compact than previous models.
Experience superior production efficiency during multi-color jacquard operations,
making the process seamless and productive.
2. Yarn Transportation Device
Our advanced yarn transportation device
minimizes resistance effectively,
particularly during yarn transport. Perfect for
yarns with low elasticity or high brittleness,
such as cashmere and rabbit hair,
ensuring consistent fabric organization
and heightened weaving efficiency,
making the weaving process smooth and efficient.
3. Oil-Adding Device
The automatic oiling system lets you set intervals and durations, preventing issues from inconsistent manual oiling and
substantially prolonging the machine's service life,
ensuring your knitting machine has an extended lifespan.
4. Yarn Feeder
Equipped with 16 yarn feeders, the machine adjusts positions automatically based on knitting width,
and fine-tunes the stopping positions according to head speed,
delivering rapid response and precise positioning.

We handle each product with the utmost care.
Our vacuum packaging safeguards against moisture and rust, ensuring product safety during transit.
We also provide customizable packing solutions that make loading, unloading, and storage straightforward,
saving you time during checking and delivery,
ensuring you receive the right product exactly when needed.
