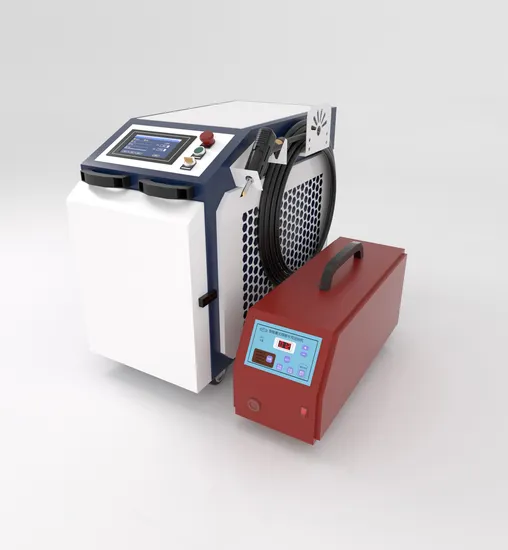

1500W 2000W 3000W Handheld Lighter Weight New Portable Metal Fiber Laser Welding Machine

Product Description

Product Description

Product Features
1. Effortlessly intuitive, this sophisticated machine offers unparalleled ease of learning, flexibility, and convenience. Its cohesive, integrated design ensures that operators need not meet stringent requirements. Simple, straightforward training is all that's required to begin; offering adaptable, multi-dimensional welding that's both hassle-free and efficient.
2. Experience minimal investment paired with reduced maintenance costs. This handheld laser welding system eliminates the need for an intricate welding table, boasts minimal consumable requirements, and is renowned for its low equipment deployment and maintenance expenses, offering exceptional value for money.
3. Drastically reduce labor needs with our handheld laser welding system, achieving speeds 5 to 10 times faster than traditional methods. Enjoy significant savings as one machine can replace the work of at least two welders annually. Delivering smooth, aesthetically pleasing welds, it significantly reduces the need for post-weld grinding, saving both time and costs.
4. Deliver impeccable light quality with laser-welded workpieces that boast no deformation, unsightly welding scars, or weaknesses. The welding result is consistently robust and polished.
5. Prioritize safety with advanced protective measures, including a contact safety protection feature that prevents accidental light emission. Welding is initiated only upon metal contact, ensuring precision. Additionally, protective glasses are included to be worn during operation, maintaining a secure environment. Detailed Photos
Product Parameters

No.	Project	Parameter
1	Device Name	Handheld Laser Welding Machine
2	Laser Power	1500W	2000W	3000W
3	Operating Voltage	AC220V/50Hz		AC380V/50Hz
4	Laser Source	BWT/Reci/Raycus/MAX
5	Welding Head	Chaoqiang
6	Wellding Machine Size/ Wire feeder Size(mm)	1000x500x700mm/610*310*480mm(L*W*H)
7	Machine Weight (kg)	100	150	200
8	Wooden Box Package Size(mm)	1050*550*750mm/650*350*520mm(L*W*H)
9	Gross Weight(kg)	106	156	206
10	Recommended Welding Thickness (mm)	≤3mm	≤4mm	≤5mm
9	Water Chiller	Hanli Dual Temperature Dual Control Chiller
10	Welding Control System	Chaoqiang
11	Welding Speed Range (mm/s)	0-30	0-40	0-50
12	Wire Feeder	Automatic Wire Feeding(Single feed wire)
13	Feeding Wire Diameter (mm)	0.8-1.6
14	Laser Wavelength	1080nm±5%
15	Output Cable Length (m)	10
16	Aiming and Positioning	red light positioning
17	Maximum Power Consumption	3.0kw	4.5kw	6.0kw
18	Working Environment Temperature (ºC)	10-40
19	Working Environment Humidity	<70%
20	Power Adjustment Range (%)	10-100
21	Weld Width Requirements	0.2-3.2mm
22	Consumables	Protective lens, Welding nozzle
23	Other	Full set of DLX electrical appliances

Company Profile

After Sales Service
Installation training (3 options):
A. We offer comprehensive installation, operation, and troubleshooting training resources. These include videos and manuals in English, supplemented by expert technical guidance via email, fax, phone, or messaging platforms such as Messenger and WhatsApp, ensuring seamless assistance with installation and adjustments.
B. Opt for in-person training in China. We ensure your comfort by providing accommodation throughout the training duration, allowing for an immersive learning experience.
C. Benefit from China's robust after-sales service team. Our English-speaking engineers and staff are ready to facilitate effective communication and problem-solving, with flight arrangements available to enhance convenience.
Training time: 3-7 working days (recommended):
Experience comprehensive installation, commissioning, and training-covering machine maintenance and operation-directly at your work site, offered gratuitously by the supplier. All related expenses, including round-trip airfare, meals, accommodation, local transportation, translation services, internet, communication, and visa fees, are the responsibility of the Customer, substantiated by actual documentation.
FAQ
Q1. When was your factory established?
We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of laser processing equipment since 2005, mainly focusing on laser processing equipment such as fiber laser cutting, laser welding equipment, laser cladding equipment, etc.
Q2. What should I do if there is a problem with this machine during the warranty period?
The quality assurance period is 12 months from the date the goods arrive at the destination port. Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period. After the quality assurance period, if you need to repair or replace parts, you must pay.
Q3. How to install and use?
We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the machine. When you encounter installation, use or adjustment problems, we will provide technical guidance by email, fax, telephone/Messenger/WhatsApp, etc.
Q4. What should I do if there is an after-sales problem?
You can directly describe your problem to the after-sales staff. China's strong after-sales service team. Our engineers (employees) can communicate and solve problems in English, and can be arranged once a day per person when you need it. If I need to go to your place to help, I will quickly arrange to go there and quickly fly to help you.
Q5. How about wholesale price?
If you are a wholesaler, distributor or agent, please contact us to get wholesale price.
