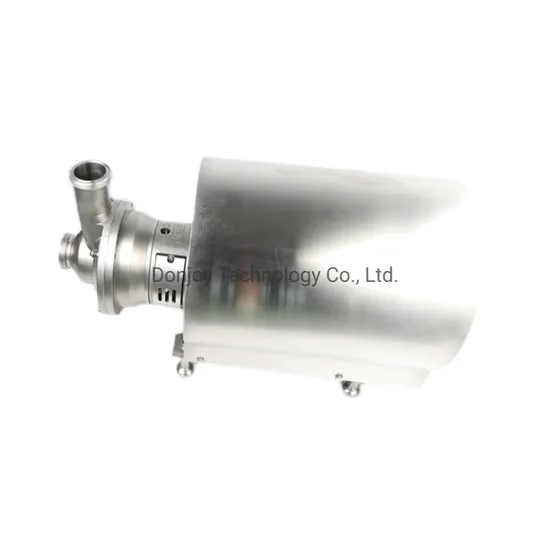

Us 3A CIP Self-Priming Pump

Product Description

CIP stainless steel hygienic centrifugal pump with self priming function
Solution for high efficiency, low noise, simple and economic maintenance, high cleanliness, stainless steel motor, IP69,
submersible, pump head in clamp connection which is easy to be cleaned and could be completely machine washable.
SLX series centrifugal pump is designed in fully stainless steel including motor. It not only optimize the internal structure such as impeller design, but also optimize external sanitation of the pump, which makes the internal absolute sanitary and external reduction of dead angle. As to it, such pump is very easy to be CIP and SIP.
Specification:

Product Name:	Full Stainless Steel Centrifugal Pump
Material:	SS304/SS316L
Sealing:	EPDM (Standard, FDA approval), FPM and NBR
Max. Flow:	120 m3/h
Max. Speed:	3600 min-1
Max. Head/lift:	70H(M)
Max. Working Temperature:	140 °C
Mechanical seal:	SIC/SiC/EPDM(Standard), C/SIC, TC/TC, single or double mechanical seal
Motor power:	1.5~22KW
Voltage:	110V, 220V, 380V
Motor:	ABB/Domestic/Siemens
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Internal polished 0.8μm (standard), 0.6/0.4 is optional
Model:	SLX
Availably connection:	Clamped, Threaded, Flanged etc.
Availably standard:	DIN, SMS, 3A, RJT, ISO, IDF
Operated:	Electric motor
Certificate:	3A-02-10 (NO.:1579), MD/06/42-EC(NO: 70521616101-00), FDA 177.2600, USP CLASS-II, EG/VO 1935/2004
Application scope:	Dairy, food, beverage, pharmacy, cosmetic etc
Packaging Details:	Plywood case

Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.
