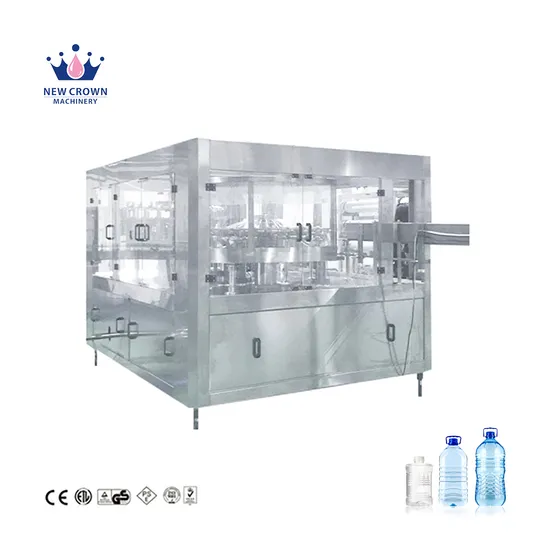

Hot Sale Custom Design Full Automatic 5L Pet Plastic Bottle Drink Water Filling Machine
| US$15,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Voltage
220/380V
Composition
Filling Machine
Processing Material
Water
Process
Filling
Capacity
2000bph
Fuction
Filling Water
Material
SUS304
Name
Monoblock Washing-Filling-Capping Machine for 3L-5
Degree of Automation
Full Automatic
Color
Silver
Filling Material
Water
Control
PLC
Bottle Type
Pet Bottle
Guarantee Time
1 Year
Transport Package
Bottle
Specification
SUS304
Origin
Jiangsu, China
Production Capacity
20 Pieces/Year
Product Description
Description
Monoblock means the filling machine integrates washing machine, filling machine and capping machine in one frame. The driving system will be transmitted step by step which makes the speed more stable.
The Monoblock filling machine will be made basing on:
1, the production capacity per hour
2, bottle type: plastic bottle, glass bottle or another
3, cap type: plastic screw cap, aluminum screw cap or another
Please send us the inquiry with above points so that we can help to send better quotation for reference.
Features:
| Machine structure | washing, filling and capping part in one unit; one driving system makes the speed more stable need one person to operate the machine no noisy while running more compact different bottles can be applied in same machine (the bottle neck should be the same) |
| Washing part | the star wheel to hold the bottle neck to avoid damage the bottle mouth there is nylon grip to protect bottle mouth |
| Filling part | round liquid tank, no residual after filling the valves are stainless steel 304 no bottle no filling filling level can be adjusted |
| Capping part | there is anti-rotary blade to fix the bottle without moving the capping torque can be adjusted apply cap sterilizing tunnel by cleaning agent |
| Control system | PLC control Touch screen Individual electric cabinet |
| Electric part | All the electric parts are well-known brand |
Detailed photos
1. Filling valve for ref
2. Cap sterilizer tunnel for ref
Parameter
| Model | CGF12-12-4 | CGF18-18-6 |
| Capacity | 1000BPH | 2000BPH |
| Applicable bottle | Plastic bottle 3L-5L Plastic screw cap | |
| Applicable filling content | Mineral water, wine, non-carbonated water | |
| Washing station | 12 | 18 |
| Filling nozzle | 12 | 18 |
| Capping head | 4 | 6 |
| Main motor power | 2.2kw | 2.5kw |
| Water pump power | 0.37kw | |
| Dimension (mm) | 2500*2100*2450 | 3200*2500*2450 |
| Weight (kg) | 4000 | 5000 |
General set up
| PLC | Mitsubishi Japan | 1pc |
| Contactor | Germany | 1pc |
| Air switch | Germany | 1pc |
| Germany | 1pc | |
| stabilized voltage supply | MingWei TaiWan | 1pc |
| Photo electricity | Autonics Korea | 1pc |
| Touch screen | Easyview Taiwan | 1pc |
