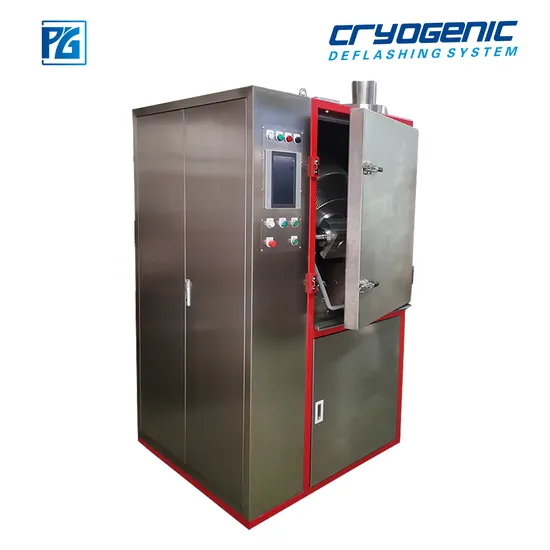

Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing Rings

Product Description

Unveiling the PG-60T Cryogenic Deflashing & Deburring Machine (60 Liter), masterfully engineered for unparalleled precision deflashing. Product Description PROCESSING PRINCIPLE
When temperatures drop, rubber and plastic parts harden, becoming brittle and crystallized, which strips them of flexibility. At this brittle temperature, they break effortlessly under external force. The flash on molded products is thinner and becomes brittle faster in low temperatures. The cryogenic deflashing machine harnesses this principle. It operates precisely when the flash is brittle, yet the products retain their flexibility. High-speed projected special plastic media deftly strike and clear the brittle flash, effectively removing it without compromising the product.
Product Feature
FUNCTIONS
Our machine excels at efficiently removing flash from small rubber and plastic components such as O-rings, gaskets, and other molded parts with unmatched precision.
Through advanced cryogenic processing, flashes are initially frozen and then eradicated by high-speed projection media (Polycarbonate blast), significantly enhancing the surface quality of molded rubber and plastic parts.
Product Specification / Models
APPLICATIONS
A. O-rings and irregular rubber parts of various materials and sizes.
B. Microelectronic product components.
C. Precision elastomeric parts.
D. Precision injection-molded plastic parts.
E. R&D production runs.
F. Die-cast products, including zinc, aluminum, and magnesium alloy parts. Our Advantages FEATURES
High Efficiency: This machine can replace the labor of 60-80 workers in flash removal.
High Precision: It eliminates minuscule, hardened flashes that manual labor cannot, significantly enhancing product precision.
Low Cost: It provides a cost-effective solution compared to manual processing. SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T
SIZE(L*W*H)	1000*1000*1950MM
WEIGHT	700KG
POWER	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	60L
EFFECTIVE CAPACITY	20L
WHEEL SPEED	3000rpm - 7200rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ250mm
BLASTING SPEED	105.7m/s
PROCESSING ABILITY	200-250kg per day

OPERATION PROCESS FEATURES
High Efficiency: The machine can substitute for 60-80 workers in flash removal tasks.
High Precision: It removes the smallest and hardest flashes, improving product accuracy far beyond manual capabilities.
Low Cost: It stands as a more economical alternative to manual processing. Installation Instructions MACHINE PICTURES
OUR FACTORY AND WORKSHOP WORKSHOP Successful Installations
Installations successfully completed in Poland and the USA. Country Shipped
