Basic Info.
Model NO.
LPG Storage Tank
Application
Liquefied Gas
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Design Temperature
-20/50 Degrees or Customized
Hydrotest Pressure
2.22MPa/2.25MPa or Customized
Payload
0.25~500 Tons or Customized
Transport Package
Cabinet
Product Description
New Stainless Steel LPG Plant Gas Storage Tanks Liquified Petroleum Pressure Vessel Storage Tank Competitive Price Product Description
LPG gas tank is a professional product for the storage of liquefied petroleum gas. It is special equipment, the kinds of pressure vessels, Q345R material, after testing, water pressure and pressure test, technical supervision and inspection of the scene, issued a pressure vessel inspection certificate. All LPG gas tanks adopt pneumatic sandblasting rust removal technology, and the appearance quality and paint quality are guaranteed.
All of our tanks are brand new. After the construction of the LPG storage tank, we will do a nondestructive examination, air-tight test, water pressure test, hydro-static test X-ray weld inspection heat treatment, etc. And we will provide a test certificate.
Tank service life is more than 20 years.
Design Standard:
ASME BPVC VIII-1 2017 ; NB/T47042-2014 GB/T150-2011 TSG 21-2016
Vessel Capacity:
0.5m3~1000m3
Main Material:
SA-516, SA-612,Q370R etc.
Product Parameters
OTHER DATA CAN BE CUSTOMERIZED BY NEED. PLEASE CONTA
https://jshuayan.en.made-in-china.com/contact-info.html
I.Chinese Standard |
Capacity | Diameter x Height x Length | Tank Weight | Payload | Thickness |
10m3 | φ1600×2370×5300mm | 3400kg | 4035kg | Shell 8.53mm/Head 8.51mm |
20m3 | φ2200×2970×5680mm | 5150kg | 8070kg | Shell 11.35mm/Head 11.33mm |
32m3 | φ2200×2970×8850mm | 7200kg | 12920kg |
40m3 | φ2470×3240×8843mm | 8780kg | 16410kg | Shell 12.62mm/Head 12.59mm |
50m3 | φ2470×3240×10903mm | 10420kg | 20180kg |
63m3 | φ2470×3240×13623mm | 12600kg | 25420kg |
80m3 | φ3100×3800×11170mm | 16700kg | 32280kg | Shell 15.58mm/Head 15.87mm |
100m3 | φ3100×3800×13850mm | 20000kg | 40350kg |
120m3 | φ3400×4104×13840mm | 24500kg | 48400kg | Shell 17.35mm/Head 17.31mm |
150m3 | φ3400×4104×17140mm | 29800kg | 60500kg |
200m3 | φ3800×4560×18324mm | 40100kg | 80700kg | Shell 19.27mm/Head 19.22mm |
Main Material | Q345R | Design Pressure | 1.61Mpa |
Hydraulic Test Pressure | 2.22Mpa | Working Pressure | ≤1.61Mpa |
Corrosion Allowance | 1mm | Design Temperature | -20~50ºC |
Life Expectancy | 20years | Working Temperature | -20~50ºC |
II.ASME Standard |
Capacity | Diameter x Height x Length | Tank Weight | Payload | Thickness |
10m3 | φ1600×2440×5308mm | 3850kg | 4630kg | Shell 11.09mm/Head 11.02mm |
20m3 | φ2200×3050×5690mm | 6920kg | 9260kg | Shell 14.86mm/Head 14.78mm |
32m3 | φ2200×3050×8860mm | 9750kg | 14820kg |
40m3 | φ2470×3320×8851mm | 11930kg | 18530kg | Shell 16.56mm/Head 16.47mm |
50m3 | φ2470×3320×10911mm | 15420kg | 25470kg |
60m3 | φ2470×3320×13001mm | 16600kg | 27790kg |
80m3 | φ3100×3960×11178mm | 22820kg | 37060kg | Shell 20.53mm/Head 20.41mm |
100m3 | φ3100×3960×13858mm | 27430kg | 46320kg |
120m3 | φ3200×3542×16100mm | 26100kg | 51000kg | Shell 20.14mm/Head 10.07mm |
150m3 | φ3300×4210×18158mm | 39930kg | 69480kg | Shell 21.79mm/Head 21.66mm |
Main Material | SA-516 Gr.70 | Design Pressure | 1.724Mpa |
Hydraulic Test Pressure | 2.25Mpa | Working Pressure | ≤1.724Mpa |
Corrosion Allowance | 1mm | Design Temperature | 50ºC |
Specific Gravity | 0.545@15ºC | Working Temperature | -20~50ºC |
Underground LPG Storage Tank
Chinese GB Standard |
Water Capacity | Inner Diameter | Overall Length | Height | Weight | Payload (90% Filling Ratio)
| Thickness | |
Shell | Heads |
7m³ | 1200mm | 6560mm | 2430mm | 3100kg | 2820kg | 7.5mm | 6.64mm |
10m³ | 1600mm | 5300mm | 2870mm | 3800kg | 4035kg | 8.53mm | 8.51mm |
20m³ | 2000mm | 6800mm | 3290mm | 5900kg | 8070kg | 10.41mm | 10.39mm |
25m³ | 2200mm | 7000mm | 3484mm | 6300kg | 10090kg | 11.36mm | 11.33mm |
50m³ | 2470mm | 10903mm | 3756mm | 11220kg | 20180kg | 12.62mm | 12.59mm |
Main Material | Q345R | Design Pressure | 1.61MPa |
Hydraulic Test Pressure | 2.22MPa | Working Pressure | ≤1.61MPa |
Corrosion Allowance | 1.0mm | Design Temperature | -20/50ºC |
Life Expectancy | 20 years | Working Temperature | -20/50ºC |
LPG Mounded Tank
ASME Standard |
Water Capacity | Inner Diameter | Overall Length | Height | Weight | Payload (90% Filling Ratio) | Material | Design Pressure | Thickness |
Shell | Heads |
22m³ | 2000mm | 7420mm | 2774mm | 6200kg | 8876kg | Q345R | 1.61MPa | 11.56mm | 10.47mm |
98.5m³ | 3500mm | 11588mm | 3548mm | 25100kg | 47073kg | SA-516 GR.70 | 1.724MPa | 23.05mm | 13.21mm |
124m³ | 3450mm | 14410mm | 5140mm | 26500kg | 60890kg | 1.38MPa | 18.98mm | 10.28mm |

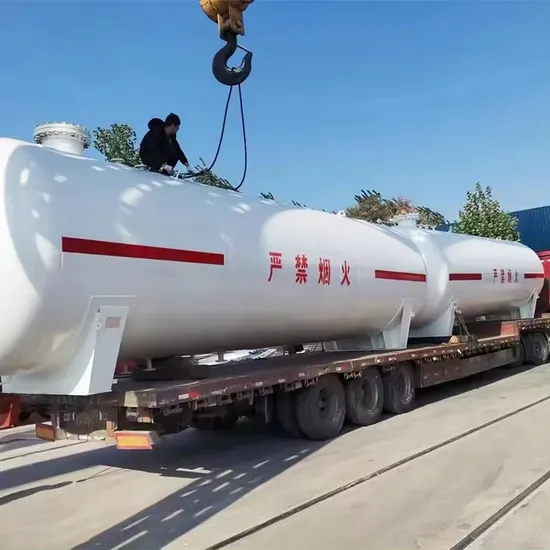

Detailed Photos
The loading part structure of a tank semi-trailer is a tank structure, which is mainly used to transport liquid, bulk materials bulk cement, and other materials. According to the different goods pulled, the tank truck series can be divided into concrete mixing trucks, tanker trucks, powder materials and bulk cement trucks, water supply trucks, etc., there are many types.
.
Liquid tanks are used for transporting liquids such as fuel, water, chemicals, acids alcohol etc. The tank material can be fiberglass, carbon steel, stainless steel, or aluminum per customer requirement.
Company Profile
Our factory has a professional technical team and advanced welding technology. Owing to the advanced technology, we have dedicated factory units and professional technicians responsible for the whole manufacturing process. Having more than 20 years of experience, we guarantee the highest quality by having control and supervision over every single detail.
Advantage1. Large filling capacity, lightweight, cost-effective;2. High safety: the bottle material is good plastic toughness, uniform force, and reasonable stress distribution;3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;4. Both ends of the bottle body are provided with a safety discharge device. In case of abnormal working conditions such asoverpressure and fire, the safety discharge device will work automatically to ensure the safety of property and personnel.
FAQ
1. What is your daily production capacity?
Our production capacity every year is 800~1000 units.
2. What products you can provide
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details. Thanks. 3. May I have the best price from you?
Sure. We are always on the way to promoting our competitiveness in product price and service. 4. Do you provide a one-stop service so I can save my time and labor? You will own a professional team in China by cooperating with HUAYAN 5. What's The Time For Delivery & Arrival?
If the Standard Model We Have In Stock Can Ship It Out Within 10 -15 days After Payment.
If It Customizes, Ordinary Cases In 15-20 days Can Be Finished For Shipment.
