Fully Automatic Front Angle Grinding Machine

Product Description

Machine features

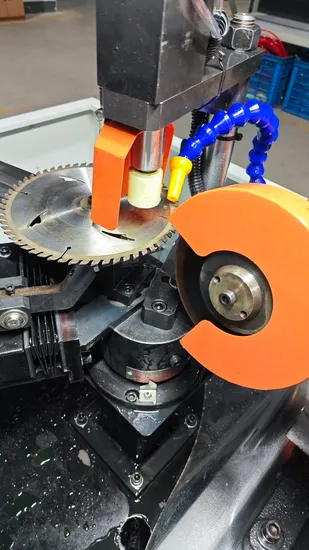

1.This machine is a special automatic equipment for grinding the front Angle of alloy circular saw blade.
2.The overall working part adopts thickening and strengthening casting base + guide slide block, which has good stability and higher precision of grinding products.
3.Controlled by PLC system, the main body is driven by two-axis stepper motor, and the operation is simple and fast with electronic handwheel.
4.The left and right teeth are optimized and adjusted, the operation is convenient, the left teeth are all ground, and the right teeth are ground again, which reduces the number of the swing of the grinding head, improves the work efficiency and improves the mechanical life.
5.With the missing tooth button, when the missing tooth is found in the grinding process, click the button to dial the tooth again.

Blade Diameter	Ø110-Ø600	mm
Range of tooth pitch	7-50	mm
Applicable tooth thickness	≤5	mm
Front Angle	-5~+20	°
Grinding wheel swing angle	-15~+15	°
Grinding wheel stroke	0-25	mm
Grinding wheel speed	5500	r/min
Working air pressure	≥0.45	MPa
Supply voltage	AC380	V
Power	2.5	KW
Weight	550	Kg
Machine tool dimensions	1350x820x1750	mm
