Australia Standard Stainless Main Door Spray Booth/Painting Booth
| US$5,600.00-10,300.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
AS7006C
Type
Spray Painting Booth
Certification
CE
Substrate
Sandwich Panel
Brand
Captain
Coating
Painting
Airflow Direction
Cross-flow Type
Heating Mode
Diesel
Paint Mist Treatment
Wet-type
Condition
New
Inside Dimension
6900X3900X2700mm(Lxwxh)
Outside Dimension
7000X5350X3400mm(Lxwxh)
Main Door
4-Folded, 3200X2600mm(Wxh)
Personal Door
1-Fold, 750X1800mm(Wxh)
Wall Panel
50mm EPS, 0.426 Steel
Ceiling Panel
0.8mm Galvanzied Steel Sheet
Air Intake
1 Sets 7.5kw Turbo Fan
Air Exhaust
1 Set 7.5kw Turbo Fan
Damper
Pneumatic
Basement
300mm High, 5 Rows Grids
Ceiling Lights
32 PCS Ceiling Lights, LED Lights
Ramp
Build-in Ramp
Heating System
Italy Diesel Burner
Total Power
16kw
Color
Optional
Transport Package
Export Container /Pallet /Disassembly with Carton
Specification
CE, SGS, ISO
Trademark
OEM/Captain
Origin
Qingdao, China.
HS Code
8424899990
Production Capacity
196sets/Month
Packaging & Delivery
Package Size
6890.00cm * 2350.00cm * 2385.00cm
Package Gross Weight
3500.000kg
Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
| Inside Dimension | 6900X3900X2700MM(LXWXH) |
| Outside Dimension | 7000X5350X3400MM(LXWXH) |
| Main door | 4-fold, 3200X2600MM(WXH) with heat insulation glass window, Stainless steel door |
| Personal door | 1-fold, 700X2000MM(WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :EPS material, tongue and groove interlock construction, hickness: 50mm, 0.426mm steel plate |
| Basement and floor:complete steel assemble, 5 rows of grids, Build-in ramp | |
| Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W, OSRAM Lamp, with electronic ballasts , change light tube from outside . |
| Glass | All window and light cover by ovenproof toughened glass |
| Generator setting type | Side upper intake air, Side bottom exhaust air, aluminum alloy frame, coated steel |
| Ventilation System | Intake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive, air capacity:28000-30000m3/h ; Exhaust fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive, air capacity:28000-30000m3/h |
| Heating system | Italian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) |
| SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 90% heat exchanging rate | |
| Filter system | Prefilter, high efficiency filter EU5 Fine Filters, 6 pieces (ceiling filter), floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device, most of electrical spare part is import, C.E standard |
| Total power | 16KW |

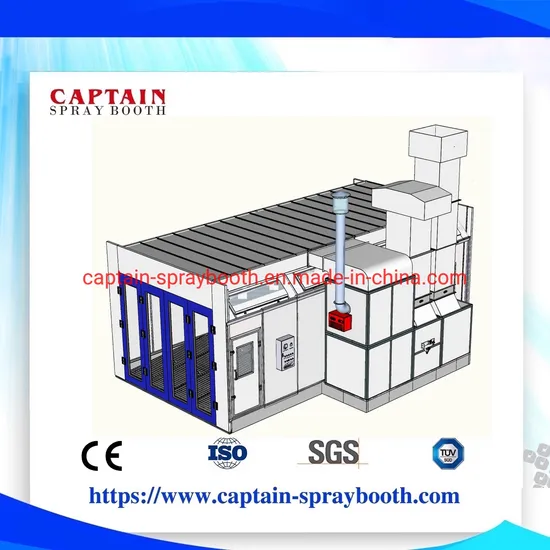

Design drawing:
Appearance
Inside view:
Air inlet and exhaust system :
High strength wall panel
Stainless Steel heat exchanger
Control Box
Package:
Workshop:
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
