with Ce 4h High Quality Universal Turret Knee Type Milling Machine

Product Description

With Ce 4H High Quality Universal Turret Knee Type Milling Machine

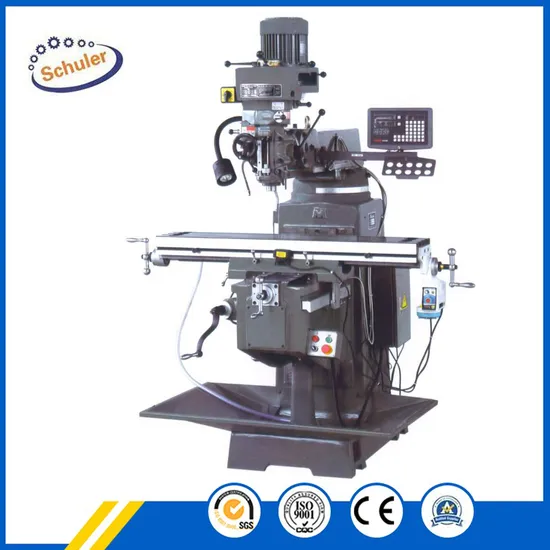

Product picture:
Milling Machine Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4
3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27
6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm
10.Universal milling head XC63T4A
Optional Accessories:
1.X-direction feeder
2.Y-direction feeder
3.Z-axis electric lift:
4.Digital display. for two groups and for three groups.
5.Aluminum alloy operation panel
6.Milling head protection
7.NT30 pindle NT40 spindle
Milling Machine Technical Parameters:

Specifications		Units	4H
Table size		mm	1270x254(10"x50")
T- slot number and size		mm	3/16/65
Max.table load		Kg	350
Working table stroke	X	mm	850
	Y		400
	Z		400
Ram stroke		mm	470
Spindle nose to table top		mm	0-460
Spindle center to body distance		mm	155-635
Taper of spindle hole			R8
Spindle speed(50HZ)		r/min	16(shift grade)66-4540
Spindle travel		mm	127
Spindle sleeve diameter		mm	87.52
Spindle feed rate		mm/r	0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power		HP	3
Rotary arm		°	360°
Head rotation (left - right )		°	90°
Head rotation (front - rear)		°	45°
Overall size(LxWxH)		mm	1600x1700x2250
Gross Weight		Kg	1200

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Milling Machine Details:
Milling Machine Package Delivery:
