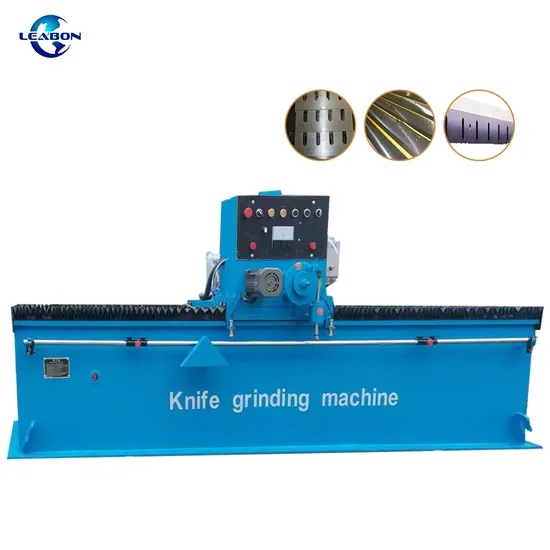

Automatic Knife Grinding Straight Blade Sharpening Machine New Product Provided Knife Double Side Surface Grinding Machine

Product Description

Automatic Knife Grinding Straight Blade Sharpening Machine New Product Provided Knife Double Side Surface Grinding Machine
Product Description
1. This series of Automatic electromagnetic suction disc Knife Grinding Machine with linear guide rail frequency conversion is made of carbon steel, which is made of gantry structure. The transmission and positioning of the grinding head are adjustable, and the guide rail is subjected to precision scraping and grinding process, so that the service life of the whole machine is long. The aviation turbine deceleration system is adopted, and the rack moves back and forth to stabilize the stroke transmission.
2. Straight-edged blades suitable for sharpening cutting machines such as rotary cutters, paper cutters, crushers, plastic machines, shearing machines, planing machines, etc., are sharpening equipment in printing, paper making, woodwork, comprehensive utilization of wood, sheet metal and other industries.
3. The whole machine automation device is convenient and fast, which is suitable for large-scale enterprises, sharpening rooms and straight knife processing, such as: (woodworking rotary cutter, rubber cutter, paper printing cutter, textile carpet cutter, fiber plastic crusher and other straight-edged knives, as well as the polishing and precision grinding of straight workpieces such as guide rail test pads).
Automatic Knife Grinding Machine Can be customized to meet different lengths of knife:1000/1500/2600/2800/3000/4000/5000/6000mm Product Parameters

Model	LB3000
Effective machining length	3000mm
Frequency conversion controller	1.5kw
Power parameter	Grinding head 4.0KW can be matched. Walking 0.75KW Rise and fall 300W Water pump 90W
Main walking guide rail	High precision square linear guide rail (made of bearing steel)
Walking mode	Precision rack and pinion transmission walking mode
Lifting screw	High precision ball screw (made of bearing steel)
Working table form	Strong electromagnetic chuck
Dimensions	4700mm*1100mm*1200mm

Application
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
