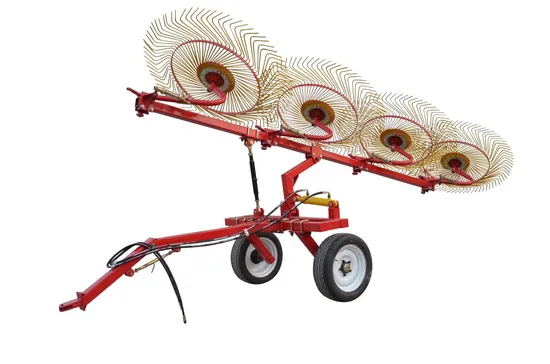

Agricultural Machinery Farm Equipment Hay Rake

Product Description

Yucheng Hongri Machinery Factory Product Description: It has simple structure,convenient operation and reliable use,less failure and high efficiency.Operation quality Maintenance is simple,dynamic performance is good.Both can hug grass,and ted the grasses.

Model	9LZ--3.0	9LZ--4.2	9LZ--5.5
Width of working state(mm )	3000	4000	4800
Height of transport state(mm)	2300	3000	3800
Number of floor teeth	4	6	8
Form a complete set of power(kw)	13--40	≥30	≥30
The whole machine size(mm)	2500*3000*1500	5200*4200*1500	450
Weight(kg)	260	380	700
Operating speed(km/h)	5- 15	10-- 15	10-- 15

Product Photos:
Main Feature:
1) Thickened raw materials, longer service life
2) Use grade 8.8 high-strength low-carbon alloy steel bolts
Product Introduction:
1.Shock spring
Equipped with a lateral shock-absorbing spring to effectively avoid tooth breakage
2. Double caliper fixed
The bearing beam double calipers are fixed separately, more stable and firm
3.Teeth
Encrypted disc, 80 teeth.
4.Stronger material
100*100*80mm beam, the weight is heavier than the same type of products on the market
5.Width adjustable
The working width of the rake can be changed by adjusting the support rod
Packing & shipping:
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
More Products:
Company Profile:
About US :
Yucheng Hongri Machinery Manufacturing Co., Ltd., with 20 years of experience in agricultural machinery production and export, the main products include disc blade, disc plough, disc harrow, lawn mower, sprayer, trailer and other small agricultural machinery for supporting tractors, serving many countries such as the United States, Canada, Mexico, Peru, Russia, Southeast Asia, South Africa and so on.

Business type	Manufacture
Location	Shiliwang Industrial Zone of Yucheng, Shandong,China
Year Established	2003
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.
