Animal Horizontal Feed Processing Machine 9cbm Grass Silage Tmr Feeding Mixer

Product Description

Animal Horizontal Feed Processing Machine 9cbm Grass Silage TMR Feeding Mixer
Product Description

Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency. The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality, reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.

Product Parameters

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Operating Principle
When mixing in a horizontal feed mixer, the Auger spiral blades move forward in a spiral situation from several directions inside the machine to the middle of the mixer. As the auger rotates, the auger moves on one side of the box, causing the accumulation on one side of the auger to reach a certain height and form a drop, thus falling freely and forming diffusion. The falling object and the object at the bottom of the box want to combine, to achieve the convection and extrusion of the mixed feed in the box, and fundamentally mix and permeate. The feed is continuously stirred with the auger in the horizontal feed mixing mixer, and it is constantly cut, softened and diffused in the mixing process, so that the feed is reasonably and evenly stirred together, and the feed is mixed to make the feed more fluffy, better taste and more nutritious.

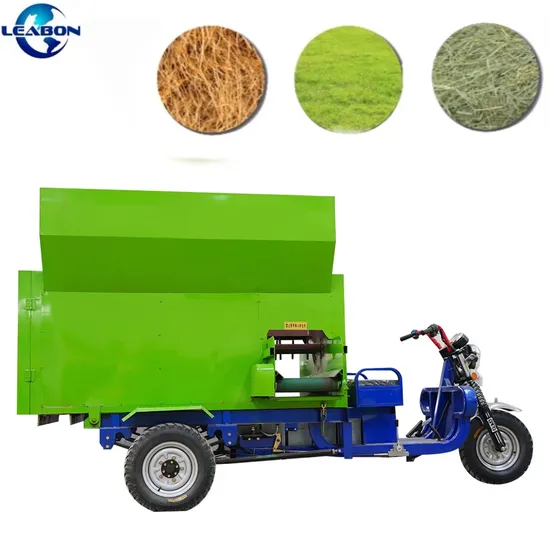

Horizontal TMR feed mixers use tricycle transport advantages 1. The machine is transported by tricycle, with low energy consumption and high passability;
2. Reduce labor intensity and feed cost;
3. It can be sprinkled on both sides, making feeding faster and more efficient;
4. The material is thrown quickly;
Gears adjust the spreading speed;
5.Low failure and easy maintenance;

6. Control all drives in the open-top cab;
7. Putting forage in batches, feeding in groups for cattle and sheep farms, suitable for pastures of various scales;
8. Strong maneuverability, strong passability, small turning radius, more flexible and convenient;
9. More suitable for stationary batching plants, with low fuel consumption, high efficiency and high speed.

Two different movable feed mixer parameters
Motor Type Technical Parameter:

Model	9SL-2	9SL-3
Battery	5PCS,60V	6PCS,72V
Structure Type	electric tricycle	electric tricycle
Feeding method	Spiral auger	Spiral auger
Sprinkling method	Belt	Belt
Size	3100*1200*1800mm	3600*1400*2000mm
Weight	1100kg	1500kg

Diesel Type Technical Parameter

Model	9SL-5	9SL-7
Tricycle Brand	Wuzheng	Wuzheng
Power	25HP	25HP
Structure Type	diesel tricycle	diesel tricycle
Feeding method	scraper	scraper
Sprinkling method	Belt	Belt
Size	4700*1800*2300mm	5000*1800*2500mm

Vertical TMR Feeder Mixer
Brief introduction
1)The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect.
2)The bottom of the trough of the machine is made of high-quality alloy steel, suitable for working in harsh environments, safe and reliable work, simple operation, convenient and flexible. The unique cutting blade made of high wear-resistant materials greatly improves the service life of the product.
Technical Of Vertical Type Mixer Parameter

Model	9TMRL-5	9TMRL-9	9TMRL-12	9TMRL-16
Motor Power(kw)	15	22	30	22+22
Capacity(T/H)	2-3t/h	4-5t/h	6-7t/h	8-10t/h
QTY of blades(PCS)	5	8	8	16
QTY of twisted dragon(PCS)	1	1	1	1
Bottom plate thickness	14mm	16mm	16mm	18mm
Side plate thickness	5mm	8mm	8mm	8mm
QTY of twisted dragon(PCS)	Nanchang JiangLing	Nanchang JiangLing	Nanchang JiangLing	Nanchang JiangLing
Dimension(mm)	3100*1900*2100mm	3900*2300*2500m	4600*2400*2600m	5800*2500*2600m
Weight(kg)	1900kg	2800kg	3600kg	5000kg

Raw Material and Application
The raw materials are all kinds of hay, silage and other fiber feed

Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .

After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea


Five-star praise form customer


FAQ

Q1:what are your raw material to mix? ------Grass, alfalfa, stalk, straw, grains powder

Q2:how many cubes do you need for this series mixer ? ------3CBM, 5CBM, 9CBM; 13CBM; 15CBM etc

Q3:What's the certification of your TMR feed mixer? ------CE Certification.

Q4:What's the warranty of TMR feed mixer? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
