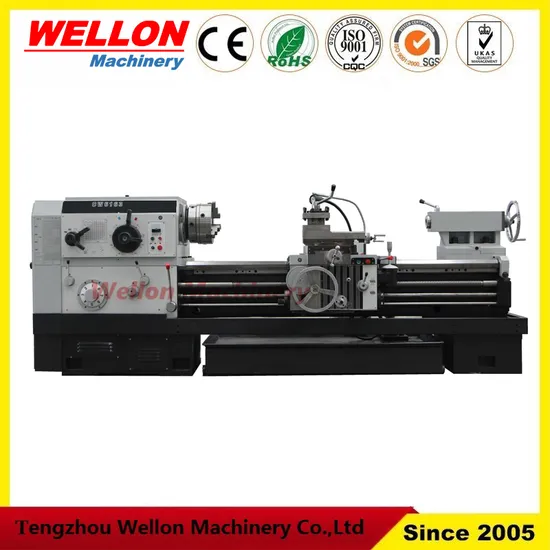

Top Quality Manual Lathe Machine Cw6163b/Heavy Duty Lathe Machine
Basic Info.
Model NO.
CW6163B
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
630
Max. Swing Dia. Over Slides
350
Spindle Bore Diameter
135
Bed Width
550
Cross Slide Travel
315
Top Rest Travel
200
Main Motor Power
15
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Product Description
Detailed PhotosProduct Parameters
CW6163 parallel lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.
| Model | CW6163B | |
| Max swing over bed | mm | 630 |
| Max swing over carriage | mm | 350 |
| Center distance | mm | 3000 |
| Spindle bore and type | mm | 135 |
| Spindle taper | mm | MT5 |
| Spindle speed and range | R/min | 18kinds 7.5-1000 |
| Longitudinal feed | mm/r | 64kinds 0.1-24.3 |
| Cross feed | mm/r | 0.05-0.76 |
| Rapid moving speed | mm/min | 4000 |
| Metric thread | mm | 50kinds 1-240 |
| Inch thread | t/in | 26kinds 14-1 |
| Module thread | mm | 53kinds0.5-120 |
| Diametral pitch thread | DP | 24kinds 28-1 |
| Cross slide travel | mm | 315 |
| Top rest travel | mm | 200 |
| Tail stock sleeve travel | mm | 250 |
| Tail stack taper | MT5 | |
| Bed width | mm | 550 |
| Main motor power | kW | 15 |
| Moving motor power | kW | 1.1 |
| Coolant motor power | w | 125 |
| Machine width and height | mm | 1450×1630 |
| 1500 | mm | 3690 |
| 2000 | mm | 4190 |
| 3000 | mm | 5190 |
| 4000 | mm | 6190 |
| 5000 | mm | 7190 |
| Max loading capacity | ||
| 1500 | kg | 2500 |
| 2000 | kg | 3000 |
| 3000 | kg | 3500 |
| 4000 | kg | 4000 |
| 5000 | kg | 4500 |
Standard Accessories :
3-jaw chuck
4-station tool holder
steady rest
follow rest
dead centers
reducing sleeve
coolant system
halogen work lamp
operating tools
Operator Manual.
Optional Accessories :
4-jaw chuck
Digital readout
chuck guard
Tool post guard
Back splash guard
Live center
