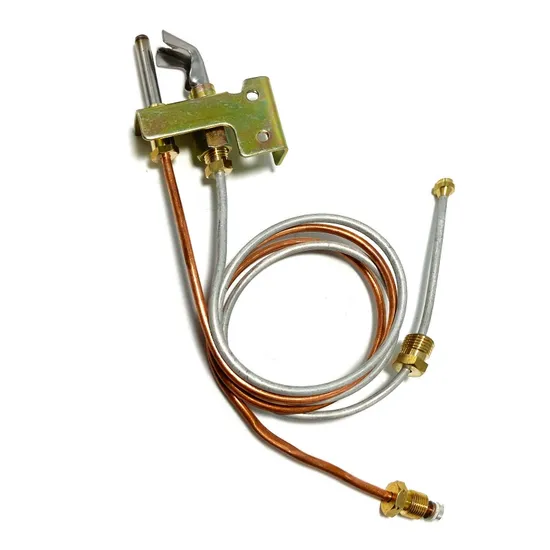

Heating Element Gas Pilot Burner Assembly Thermocouple and Tubing

Product Description

Product Description

item	Water Heater Pilot Assembely
Product name	Gas Water Hheater Pilot Burner
Brand Name	Yuanming
Customized support	OEM, ODM
Type	Gas Heater Parts
Application	Hotel, Household

Description: 1. Pilot Burner is a kind of product that is derived from some specific gas appliance which is required to meet some burning characteristics.
2. There are mainly two types: thermoelectric type safety device and ion-detection safety device.
3. Pilot burner is assembled by electrode, pilot and thermocouple or detection needle.
Advantages:
1. Pilot burner can ignite the main burner without deflagration.
2. Pilot burner can stabilize the flame of main burner.
3. Pilot burner can detect flame normality.
4. Pilot burner can reignite or cut off the energy source when the flame is put out by external factors.
ODS Pilot Burner is called ODS for short. When gas appliance is working in a unvented space for some time, the oxygen is involved in chemical reaction and produced CO2 and H2O when burning.
In this case, the oxygen content in this unvented space is decreasing while CO2 content is increasing.
People will feel uncomfortable when oxygen content arrives the level 16% to 17% or higher.
It will even cause toxicosis when CO2 content arrives the level 4% or higher.
While ODS Pilot Burner can avoid above dangers and promise the safe operation in unvented space.
It will cut off the energy source so that gas appliance stop working to assure personal safety once oxygen content arrives the level 18.5% to 19.5% and CO2 content arrives the level 0.8% to 1.5%.
Detailed Photos


MORE RRODUCT SHOW Certifications
Company Profile
Packing & Delivery Packing: CartonDelivery:The main transportation route is UPS, and other transportation methods will be used to reduce the transportation time when there is a large volume of product order.
Our Advantages Pause at any time: The newly-added ball valve can also suspend the supply of propane at any time. No need to disconnect 1lb tank anymore.
Easy to install:We have increased the length of the Adapter, which can make the installation easier and firmer. You can tighten it by hand or you can use a wrench, Very easy.
Enhanced tightness: When the Adapter is assembled, it is connected by the NPT thread with the best sealing performance, and special sealing glue is added, which has the best sealing performance.
100% solid brass: Made of superior solid brass, withstands weather, scratching and corroding.
