Professional Manufacturer Mobile Horizontal 100 Ton Cement Storage Steel Silo
| US$26,588.00-33,986.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CS27B
Structure
Cement Silo
Productivity
35m²/h
Feeding Height
500mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Cement Silo
Safety
Stainless Steel Pressure Relief Valve
Dust Collector
Air Jet, Auto Cleaning
Level Indicator
24V DC
Cement Flow
Air Power Help Cement Flow Fastly
Work on Ship
Suitable
Transport Package
Container
Specification
In 40ft HQ container
Trademark
DOM
Origin
China
HS Code
84749000
Production Capacity
100
Product Description
Mobile cement siloBasci configuration and parameters
| Storage silo | Volume | 27 m3 ,35t |
| Weight | 5400KGS | |
| Power | 23 KW | |
| Thickness | Stronger Corrugated board design 4mm, bottom 5mm | |
| Loading work | Built-in pipe, Cement is distributed evenly in silo | |
| Structure Strengthen | Reinforcing bars inside | |
| Transport size | in 40ft HQ container | |
| Control System | Siemens Electric parts |
Details of every part
Safety
1. Electric Air plug, fast connect and anti-rain
2. Mostly electric cable are hidden in wire tube, the control box is locked if don't work. To ensure the safety of electricity
3. Safety logo in may danger place.
4. Emergency stop for electric parts.
5. Connect ground line
6. Pressure relief valve - balance pressure in silo
7. Dust collector, balance air in / out silo.

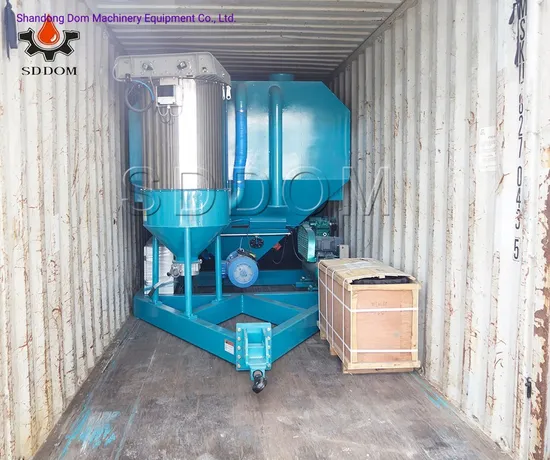

Packaging
Our main products
Different Kinds of Cement Silo
1) Contianer Cement Silo, container size
2) Mobile Cement Silo, With wheels
3) Bolted Silo, big cement silo, from 50t capacity to 1000t capacity
4) Frame Cement Silo, Shipping in container.
5) Stackable Silo. container size, Stackable like general container.
6) Big bag silo. Suitable for big bag cement.
