Weihai Reliable Wood Veneer Rotary Cutting Lathe for Plywood Production Line

Product Description

Product Description

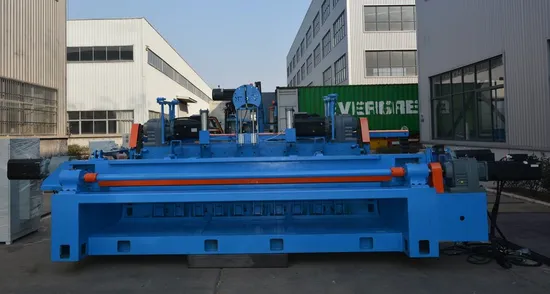

5'FT Spindleless peeling machine

Length of the Roller(mm)	1500
Power of Double Roller(kw)	7.5kw X 2
Power of Single Roller(kw)	7.5kw X 2
Power of Screw Feed(kw)	7.5kw
Power of Rotary Clipper(kw)	1.5kw
Power of Rubber roller (kw)	1.5kw
Total Power(Kw)	40.5kw
Roller Reducer	Helical Gear Reductor X 4
Screw Feed Reducer	Helical Gear Reductor X 1
Clipper Reducer	Helical Gear Reductor X 1
Rubber Roller Reducer	Helical Gear Reductor X 1
Veneer output speed(m/min)	30-80 m/min Adjustable
Blade (mm)	1500*180*16
Max opening(mm)	400
Minimum Log core	28mm / 24mm
Thickness(mm)	0.4 - 3.6
Clipper width(mm)	>= 400 mm
Diameter of screw(mm)	90mm
Control Unit	Peeling Speed Adjust System Closed loop Servo control
Weight(kg)	5500

9'FT Spindleless peeling machine

Parameter	Value
Length of the Roller(mm)	2700
Power of Double Roller(kw)	11kw X 2
Power of Single Roller(kw)	11kw X 2
Power of Screw Feed(kw)	11kw
Total Power(Kw)	55kw
Roller Reducer	Helical Gear Reductor X 4
Screw Feed Reducer	Helical Gear Reductor X 1
Veneer output speed(m/min)	50-90 m/min Adjustable 50-90 m/min
Blade (mm)	2700*180*16
Screw Diameter(mm)	90mm
Max opening(mm)	500
Minimum Log core	35mm
Thickness(mm)	0.5 - 3.0
Control Unit	Peeling Speed Adjust System Closed loop Servo control
Size(mm)	5000*2300*1600 Length(*Width(*Height(
Weight(kg)	10800

Packaging & Shipping

Workshop Processing

Company Profile

Weihai Reliable Imp&Exp Corp., Ltd is located in Linyi city, Shandong province, China, where is famous for the wooden panels and woodworking machinery. Our company was established in 2004, and have been engaged in the manufacturing and supply of woodworking machines since then, Including plywood production machinery, Particle Board production machinery (Linyi Factory), short cycle lamination machinery (Wuxi Factory) and other relevant machinery, and our customers are coming from all round the world, like India, Vietnam, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia, Malaysia, Iran etc.
Our company has more than 20 experienced mechanical and electrical engineers, and they mainly focus on the research and development of the woodworking machinery. Meanwhile our factories are fully equipped with advanced lathe machine, grinding machine, planner and welder, which together contribute to the high precision machinery. Also we have a very strong and experience after-sale team, they are doing all commissioning and maintenance work for our customers.
Our company culture is "Quality is our for-ever goal, after-sale Service is our priority, win-win with customers", and we would like to cooperate with the friends from all around the world.
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
