Plastic Oil Can, Jerry Can Blow Molding/Moulding Machine (PXB70A)

Plastic Oil Can, Jerry Can Blow Molding/Moulding Machine (PXB70A)

US$34,000.00-44,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PXB70A
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Bottom Blowing
Available
Material
PP, PE, ABS...
Total Weight
7.8t
Output(Dry Cycle)
700 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Toys, Auto Parts, Sprayers, etc
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
70mm
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 18L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100

Product Description

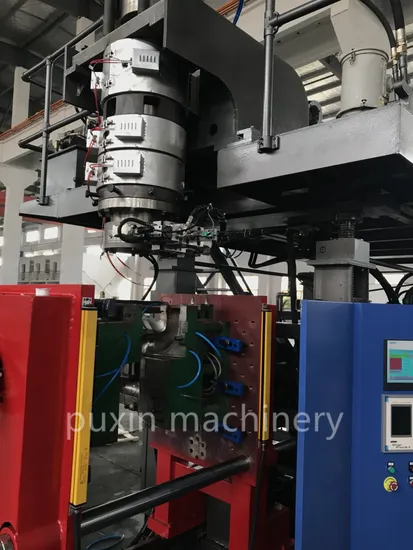

PXB70A
12L - 20L Blow Molding Machine
- Fixed station & Accumulator head
- Perfect usage for toys, auto parts, high pressure sprayer, etc.
- Fast start-up speed, energy saving.
- Optional internal thread rotary bottom blow system.
Configuration List
PLC MITSUBISHI Japan
Touch Screen HITECH Taiwan
Inverter MITSUBISHI Japan
Power Supply MEAN WELL Taiwan
Relay OMRON Japan
Hydraulic Valves YUKEN Japan
Hydraulic Pump SETTIMA Japan
Contactors LS(LG) Korea
Solid relay FOTEK Japan
Breaker LS(LG) Korea
Temperature Control Module MITSUBISHI Japan
Oil Sealing DZ Taiwan
Oil Tube LIEBAO Taiwan
Transducer GEFRAN Italy
Proximity Switch SONON China
Motor DMASS German
Air valve FESTO German
Parison control MOOG Japan

Parameters
Specifications
Material PE,PP, ABS...
Max container capacity L 20
Output(dry cycle) Pc/hr 700
Machine Dimension(LxWxH) M 4.3x1.7x3.9
Total weight T 7.8
Clamping Unit
Clamping force KN 130
Platen opening stroke mm 300-850
Platen size mm 680*600
Max mould size(WxH) mm 460*600
Mould thickness mm 310-380
Power
Servo oil pump motor power KW 15
Servo pump displacement L/Min 80
Cooling Water Pressure MPA 0.3
Air pressure MPA 0.8
Air consumption M3/min 0.7
Average energy consumption KW 18-22
Extruder unit
Screw diameter mm 70
Screw L/D ratio L/D 24
Melting capacity Kg/hr 80
Number of heating zone zone 3
Extruder heating power KW 12.6
Extruder driving power KW 22
Die
Number of heating zone zone 5
Power of die heating KW 20
Max die-pin diameter mm 200
Accumulator capacity L 3

Delivery Time:
- No later than 50 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
