Lift Table Universal Horizontal Milling Machine X6132 X6140 XL6136 X62g X62GS
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6132 X6140 XL6136 X62G X62GS
Type
Knee Type Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
320X1325mm
Long Travel(mm)
700mm
Cross Travel(mm)
255mm
Vertical Travel(mm)
320mm
Motor
2.2kw
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description

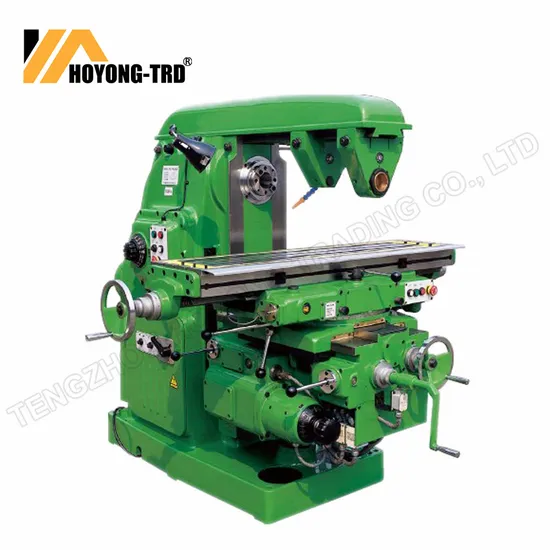

Lift Table Universal Horizontal Milling Machine (X6132)
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing.
In addition to all the principal features of horizontal milling machines working table can be swiveled up to 45 degree. Equipped with dividing head, it can be used for various spirals and especial surfaces such as spur and helical cylindrical gears and flutes of twist drills. According to customers require, every kind of milling machine can be equipped with digital display.
STANDARD ACCESSORIES:
1. Horizontal arbor assembly
2. Double head wrench
3. Inner hexagon spanner
4. Rod mill
5. Oil gun
6. Knee crank
SPECIFICAITONS:
| SPECIFICATION | UNITS | X6132 |
| Table size | mm | 320x1325 |
| Longitudinal travel(manual/auto) | mm | 700/680 |
| Cross travel(manual/auto) | mm | 255/240 |
| Vertical travel(manual/auto) | mm | 320/300 |
| Work table swivel angel | ± 45 | |
| Cutting feed speed | mm/min | X: 19--950, Y: 19--950,Z: 6.3--317 |
| Rapid feed speed | mm/min | X-2300,Y-2300,Z-770 |
| Spindle speed range | r/mm | 30-1500 |
| Spindle speed step | - | 18 (steps) |
| Distance between spindle axis table surface | mm | 30~350 |
| Power of spindle motor | kw | 7.5 |
| Feed motor power | kw | 2.2 |
| Overall dimension(LxWxH) | mm | 2300x1770x1600 |
| N. W/G. W | kg | 2650/2950 |
