High-Quality Hollow Prefabricated Board Machine

Product Description

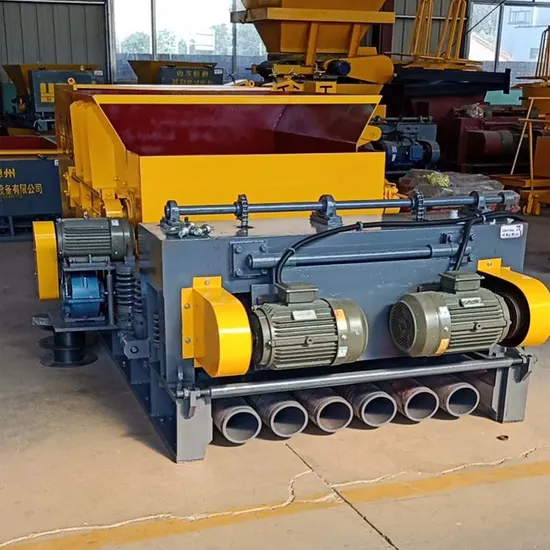

precast concrete large hollow core slab making machine/molds for concrete panels
precast concrete large hollow core slab making machine for houses works on the long-line table, using the high-strength low- relaxation steel strand as the guide, using the pushing work method to firm the concrete hollow core slab. The slab have the advantages o smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m. The concrete hollow core slab mainly used on the larger bay workshop, school, hospital shopping mall, office building, bulk storage plant etc.
Product Features
1.High load capacity, large span and good Anti-seismic performance.
2.Fire resistant, heat insulation, sound insulation performance is good.
3.Easy to forming up:
The hollow core slab specifications can be customized according to the need of project, customer can choose different specifications according the building demend.
4.Energy conservation and efficient:
This hollow slab machine adopt advance production technology of extrusion molding, without molds and steam curing, reduce the labor cost, largely improve the production efficiency.
5.Reasonable design:
The hollow slab using steel cable for longitudinal reinforcement, have good toughness, strength, reasonal structure design, superior to other similar panels.
6.Save time and labor cost:
Hollow slab can be directly used as the floor slab and roof slabs, also can put on decorative brick, dry sticks stone on slabs for surface finishes. This can save rendering process, save labor and money. At the same time, avoid crack if plastering.
Production Process of the precast prestressed concrete slabs production line-

Strengths of the precast prestressed concrete slabs-
1.Advanced and matured technology of the precast prestressed concrete slab production line
2.Fast molding speed of the precast prestressed concrete slab machine:1.2-1.4m/min
3.Low labor strength and high efficiency of the precast prestressed concrete slab production line
4.Long service life for the precast prestressed concrete slab machines
5.Strong bearing of the precast prestressed concrete slabs6.Only 3~4 workers needed for the precast prestressed concrete slab production
The precast prestressed concrete hollow core slabs can be used as the floor of the buildings. They are stout with steels inside. With smooth surface, solid construction, high strength and precise dimension, the precast prestressed hollow core slab meets all the national specification requirements.
Available Models of the Precast Prestressed Concrete Slabs Machine-
Load and span of precast prestressed concrete slabs-
Company information
Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at Ningjin County, Shandong Province,China
We specialize in the production of precast concrete molding machine,including Concrete hollow cored slab making machine, concrete lintel machine, concrete purlin machine, concrete column making machine, lightweight wall panel machine, and concrete pipe making machine, concrete mixing machine,concrete batching plant machine,etc.The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs.
