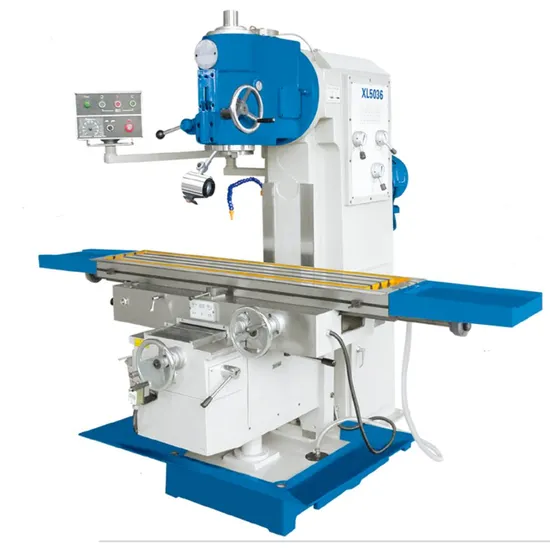

XL5036 Vertical Milling Machine, Machine Tools
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL5036
Structure
Bed type
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Specification
2900
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionProduct Parameters
| Specification | Unit | XL5036C | XL5036CL |
| Table size | mm | 1325X360 | 1600X360 |
| T-slots ( NO./Width/Pitch) | 3/18/80 | ||
| Longitudinal travel | mm | 1100 | 1300 |
| Cross travel | mm | 320 | |
| Vertical travel | mm | 450 | |
| Table feed (X/Y/Z) | mm/min | 30-750/20-500/15-375 8 steps | |
| Table rapid speed ( X/Y/Z ) | mm/min | 1200/800/600 | |
| Spindle taper | 7:24 ISO50 | ||
| Spindle speed range | r.p.m | 50-1475 | |
| Spindle speed step | steps | 12steps | |
| Spindle travel | mm | 70 | |
| Max. swivel angle of vertical milling head | ±30° | ||
| Distance between spndle nose and table surface | mm | 50-500 | |
| Distance between spindle axis and column guideway | mm | 378 | |
| Torque of X/Y/Z axis AC servo motor | N.m | 15 | |
| Main motor Power | kw | 5.5 | |
| Overall dimensions (Lx WxH) | mm | 2245X2100X2150 | 2520X2100X2150 |
| Net weight | kg | 2900 | 3000 |
