PCB Industrial PTFE Tube Manufacturing with Specific Customization Smooth Cuff Etching Machine Pipe

Product Description

Industrial Madical device PTFE Tube Manufacturing with Specific Customization smooth cuff
Product Description
1, Low chemical activity, resistance to all kinds of chemicals;
2, Weather resistance, corrosion resistance is strong, not easy ageing;
3, Low surface friction coefficient, the viscous resistance is strong;
4, Excellent electrical properties;
5, Heat resistance(+260ºC), Cold(-65ºC)
6, High pressure and low pressure resistance

Brand Name	DGF
Item Name	Industrial Madical device PTFE Tube Manufacturing with Specific Customization smooth cuff
Color	Milky White/Translucent/Black
Inner Layer	Straight tube/Spiral corrugated hose/Annual hose PTFE
Reinforcement	Stainless steel 304 & 316 braided/Aramid fiber
Port Type	Straight tube/Flange/Fitting
Temperature Range	-65ºC -+260ºC(-85°F-+500°F)
Specification	1/4'' 5/16'' 3/8'' 1/2'' 5/8'' 3/4'' 1'' 1¼'' 1½'' 2'' 3''
Applications	Aero space &Transportation Technology, Electronics, Components & Insulators, Chemical & Pharmaceutical Manufacturing, FoodProcessing, Environmental Sciences, Air Sampling, Fluid Transfer Devices and Water Processing Systems.
Material	PTFE
Factory	Zhaoqing High-tech Zone Dongshi Machinery Technology Co.,Ltd.
Standard	ISO9001

No.	Specification		Inner Diameter	Outer Diameter(braided)	Min Bend Radius	Working pressure	Unit weight
	DN(mm)	NB(inch)	mm	mm	mm	bar	kg/m
1	6	1/4	6.5-6.8	10.4	19	82	0.112
2	8	5/16	7.8-8.1	12.1	20	75	0.144
3	10	3/8	9.1-9.3	14.2	22	60	0.158
4	15	1/2	13.1-13.3	18.8	28	48	0.223
5	18	5/8	16.0-16.3	21.9	32	38	0.345
6	20	3/4	19.3-19.8	26	40	30	0.456
7	25	1	25.0-25.4	30.4	56	28	0.511
8	32	1¼	32.0-32.5	41.9	70	25	0.878
9	1	½	38.5-39.5	49.9	75	20	1.138
10	50	2	53.5-54.5	66.9	80	15	1.725
11	80	3	61.5-63.5	80.4	150	10	2.622

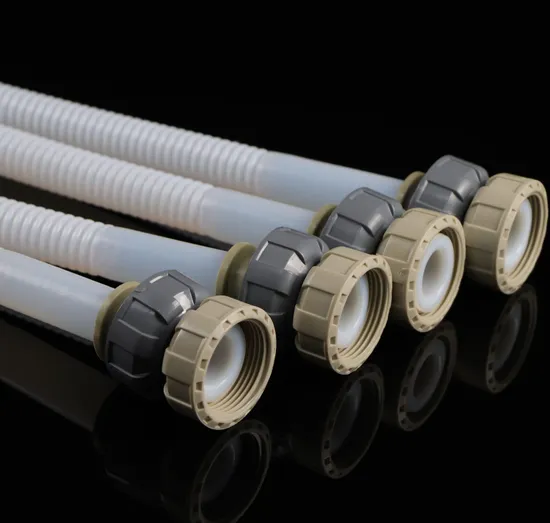

* Meet SAE 100R14 standard.* Customer-specific products may be discussed with us for detailed. Detailed Photos
Packaging & Shipping
Company Profile
Zhaoqing High-tech Zone Dongshi Machinery Technology Co.,Ltd was founded in 2012, is a military-civilian integration enterprise, specializing in Polytetrafluoroethylene equipment and PTFE hose R & D, manufacturing and sales in one of the national high-tech enterprises.
It has two production bases (Zhaoqing factory, Shaoguan factory), with an annual output of more than 10 million meters of various hoses.
Products are widely used in petrochemical industry, medical equipment, semiconductor, rail transit, big data, food machinery and other fields.
The company always adheres to the core values of "integrity-based, user first", serves the global equipment intelligent manufacturing, and is committed to becoming the global PTFE hose intelligent manufacturing leader.
Certifications
Our Advantages
FAQ
1.Q: Are you a factory or trading campany?A:we are a professional manufacture having 12 years production experience.2.Q:I want to know the main products of your company.A:We are a leading manufacture of PTFE tube,Hydraulic Hose,PTFE braided hose,PTFE corrugated tubing,PTFE braided corrugatedhose,also have all kinds of fittings.3.Q:What's the specification of the products?A:Standard specification1.capillary tube:ID0.3mm~6mm2.Inner tube:ID 2mm~101.6mm3.Braided hose:(smooth bore) 1/8"~2"(corrugated) 3/16"~2"
4.Q:Do you accept customized?A: Yes, we accept customized,as long as you provide specifications,we can produce according to your requirement.Please kindly send the diameter and drawing to us.5.Q:What's the material of the out layer?A: 1.Stainless steel 304 or 316 wire braided
2.Aramid Fiber3.Nylon or cotton coated4.Any other reinforcement layer also available, just send requirement to us.6.Q:Can your company provide the sample?A: Yes, we can provide the short sample with free of charge, but the express charge will be paid by the customer.
