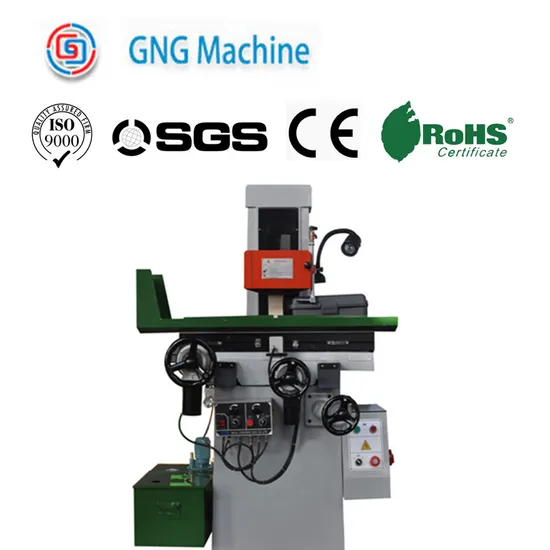

Automatic Precision Surface Milling Grinder
| US$18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MD618
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Distance From Table Surface to Spind
335mm
Net Weight
750kg
Gross Weight
800kg
The Total Input Power
150W
Number of T -Slot T (×)
1×12mm
Transport Package
Carton or Wood Case
Specification
CE ISO
Trademark
G&G
Origin
China
HS Code
84571010
Production Capacity
1000 Sets/Month
Product Description
Characteristics of machine tools:
Based on manual surface grinder, it covert the longitudinal and vertical machine to fully automatic The bidirectional friction electronic clutch, simple and reliable structure, clutch reversing process has no impact, no noise, safe commutation 5000000 times; the electric control part with electronic switching frequency switching, The service life 10 times longer than the relay control, simple operation, sensitive, infinitely variable; large output torque, low noise, Safe and reliable. Power supply use a number of mechanical and electrical protection function which is safe voltage, Energy saving, power saving, power consumption per class (calculated according to 8 hours) is only 0.6.When the manual grinding is working,Before and after the workbench's movement, in and out, around the reversing are automatic operation, greatly improving the production's efficiency and the surface finish, suitable scope that from the original single, small batch to mass batch.
| Model | MD618 | |||
| Bench | Max.workpiece to be Ground (L×W×H) (×) | mm | 460×180 | |
| Maximum travel of table (L × W) (×) | mm | 500×190 | ||
| Table maximum cutting area (L × W) (×) | mm | 500×190 | ||
| Number of T -Slot T (×) | mm | 1×12 | ||
| The grinding head | Distance From Table Surface To Spindle Center | mm | 335 | |
| Wheel Size(dia×width×bore) (WA46K5V) (××) | mm | ø200×20×31.75 | ||
| Spindle speeds (50HZ) | r/m | 2850 | ||
| The amount of feed | Table longitudinal (left and right) speed (stepless) ()() | /min | 3--23 | |
| Table horizontal (before and after) the amount of feed () | Continuous (variable speed) () | m/min | 150 | |
| Intermittent (stepless) () | m/ | 0-5 | ||
| The handwheel rotates | mm | 2.5 | ||
| Hand wheel each grid | mm | 0.02 | ||
| Vertical (up and down) feed wheel feed () | The handwheel rotates | mm | 1.25 | |
| Hand wheel each grid | mm | 0.01 | ||
| Reversing feeder | The total input power | W | 150 | |
| X- feeder output speed. X- | /min | 0--225 | ||
| X- feeder size X- | m | 280×130×120 | ||
| Y- feeder output speed. Y- | /min | 0--120 | ||
| Y- feeder size M Y- | m | 280×130×120 | ||
| Motor power | Spindle motor | kw | 1.1 | |
| Cooling motor | kw | 0.4 | ||
| Working precision | The machined surface of the base of parallelism | m | 300/0.005 | |
| Surface Roughness | μm | Ra0.32 | ||
| Weight of machine | Net | kg | 750 | |
| Cross | kg | 800 | ||
| Packing Size (L×W×H) (××) | m | 1060×1170×1870 | ||
