Artificial Floor-Type Sumore Made in Shanghai China Horizontal Machine Metal Lathe

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

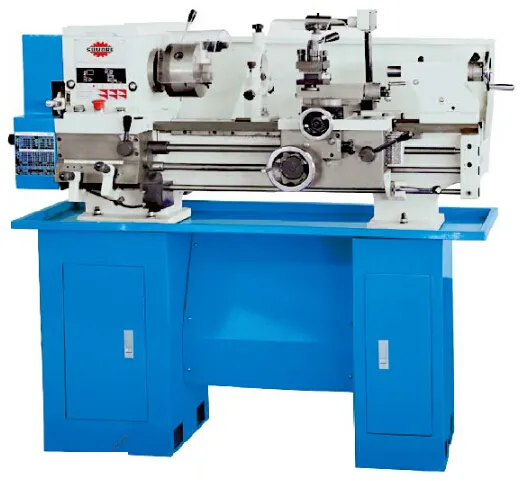

Economic Bench Type Metal Turning Lathe Machine for Sale SP2142
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
sp2142 hot selling torno para metales universal mechanical lathe manual gear head lathe horizontal lathe machine torno mecanicoQuick Detail: Main specification of gap bed lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 530/940mm
Swing over bed: 305mm
Swing over gap: 440mm
Spindle bore: 36mm
Description:
SP2142 machine lathe we ship is new condition not used lathe machine, this manual lathe machine is medium size for job work. It is manufactured in China according to quality requirement of made in japan lathe machine, made in Germany lathe, made in Taiwan lathe and made in Korea lathe. Feature / advantage of lathe machine is as below:
Engineered from high grade castings. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. V way bed ways induction hardened and ground. Cross and longitudinal interlocking feed, enough safety All machines have to pass the checklist of the machine precision before shipment Including switch for test running Metric/Imperial threading available Belt-driven headstock with low noise and easy operation.
Product Parameters

Model	SP2142-I	SP2142-II
Max. Swing over bed	305mm
Swing over Carriage	173mm
Max. Swing over gap:	440mm
Width of bed	182mm
Distance between centers	530mm	940mm
Spindle taper	MT5
Spindle bore	36mm
spindle speed	12 step
Range of spindle speed	50~1200r/min
Range of Imperial thread	40kinds(4~112T.P.I)
Range of Metric thread	15kinds (0.25~7.5mm)
Range of feed amount	0.12~0.42 mm/r(0.0047"~0.0165)
Diameter of lead screw	φ22(7/8")
Pitch of lead screw	3mm or 8T.P.I
Saddle travel	510mm	810mm
Cross slide travel	150mm
Compound travel	90mm	85mm
Barrel travel	100mm	95mm
Barrel diameter	32mm
Taper of tailstock quill	MT3
Motor power	1.1kw
Coolant power	0.04kw
Machine size	1420×750×760mm	1780×750×760mm
Stand left	400×370×700mm
Stand right	300×370×700mm
Machine weight (N.W/G.W)	365/415kgs	385/435kgs
Stand (N.W/G.W)	60/65kgs
Loading amount	27pcs/20'	24pcs/20'
