CNC Carving Router Wood Carving Engraving Machine Carpentry Machine 3D Wood Engraving CNC Routers with Pneumatic Press Wheel Vacuum Table

Product Description

CNC Carving Router wood carving engraving Machine Carpentry Machine 3D Wood Engraving CNC Routers with Pneumatic Press Wheel Vacuum Table
Product Parameters

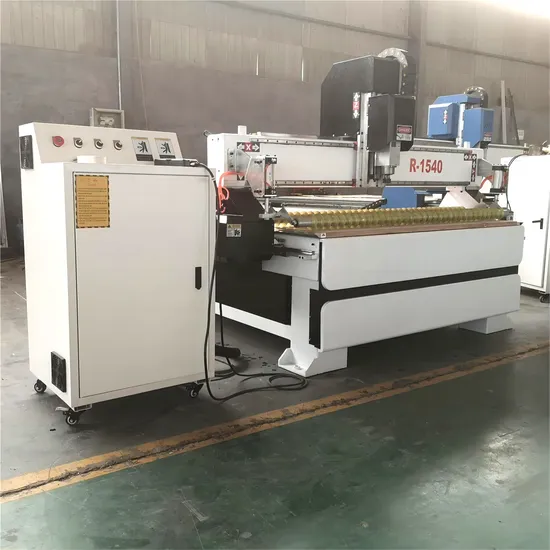

Model	R-1540
Working size	1500*4000*200mm
Table size	2080*4250mm
Body structure	Steel structure
Working table	Pneumatic press wheel +Vacuum worktable with T-SLOT
Working accuracy	±0.05mm
Repositioning accuracy	±0.05mm
Traveling speed	40m/min
Working speed	25m/min
spindle	6KW air cooling spindle
Spindle rotary speed	0-18000rpm
Control system	DSP A11E
Drive and motor	Leadshine stepper motor and drivers
Transmission mode	Helical rack pinion for XY axis HIWIN square rail, ball screw for Z axis HIWIN square rail
Working voltage	AC380V/60HZ&50hz 3phase
Command language	G-code,*u00,*mmg,*plt
Software	Artcam
Cutters	10 pieces with diameter of 6 and 12.7
Lubrication	Manual
Dust collector	Two bags
Vacuum pump	7.5kw air cooling
Machine weight	1900kg
Guide rail	20 Square rail ( Taiwan HIWIN)
Packaging Measure	480cm*220cm*180cm

Our Advantages
1. Big power Air cooled spindle:
Independent Z-axis,high-precision screw precise tool alignment; According to the processing type, we have 4.5kw/5.5kw/7kw/9kw/10kw air cooling and water cooling spindle for option.
2. Strong machine structure:
Machine frame is welded with industrial steel pipes thickness 6mm,
Box structure, large load-bearing capacity, high-precision planer processing, no deformation, guaranteed accuracy, self weight of the body, high-speed operation without shaking, more stable.
3. Original HIWIN 20 TO HIWIN 45 high-precision linear square guide rails:
We use original HIWIN 20 square rail and M2 rack pinion.Double slider load-bearing, with advantages such as high precision, allowable load, high rigidity in all directions, simple lubrication structure, and automatic centering function
.
4. High power Servo or stepper subdivision motors:
We have Japan Yaskawa servo motor drivers 850w.1300w etc.Fast speed and strong strength; Paired with industrial grade high elasticity reduction wheels, it has high torque and good impact resistance; The Y-axis adopts dual motor synchronous drive, which has strong force, high speed, and maintenance free long-term use.
5. Central lubrication system:
With it, you only need to lightly press to quickly lubricate all the sliders.
6. Dust collection system
All of our cnc router machines are equipped with dust collection system to keep environment more clearn . There have 2.2kw and 3kw double bags more stronger suction.
7. Advanced online control system:
We have different advanced control system for option like DSP, WEIHONG,MACH3,LNC,Syntec etc.
Friendly human-machine interface, easy to learn and use; Large capacity, fast transfer of complex files, good system stability, and high motion control accuracy; Equipped with power-off and breakpoint protection functions.
8. Optimize technology of frequency conversion to save 10 kilowatt hours per day.
9. The carving depth of one layer is up to 15 cm, and the speed is increased by 100 times.
10. Simple operation makes carving easier.
11. Automatic leveling, uneven stone can be engraved with flat words.
12. Special spindle which can work on all kinds of materials like hard stone, glass, metal etc
13. Strong power and precision. 5-year warranty, lifetime after-sale.
14. Professional waterproof treatment, so that the service life of the machine is more than 20 years.
15. Stainless steel water retaining treatment to protect the gantry beam of the equipment no damage.
16. The bed bears 10 tons, making the carving easier. Optional automatic feeding function
17. Stainless steel water tank is used as a whole.

Material & Application
Application:
1. Advertising and gift making industry:
used for carving various types of dual color board signs, organic glass, Vatte stone door signs, three-dimensional billboards, decorative gifts, light box dual color human statues, relief medals, embedded wall style light houses, light guide board carved light houses, organic board relief three-dimensional door heads, etc.
2. Mold Industry:
Engraving button relief molds, printing hot stamping molds, injection molds, blow molding molds, stamping molds, eye molds, etc.
3. Tobaccodustry:
in used for packaging anti-counterfeiting labels on cigarette boxes, template making, and cigarette wheel making.
4. Circuit fabrication, drilling and milling of slots in the development of printed circuit boards (PCBs).
5. Automotive industry:
processing of tire molds, car lamp molds, and decoration molds.
6. Mint industry:
production of anti-counterfeiting molds for banknote printing watermarks and coin molds.
7. Packaging industry:
Box and bag hot stamping, paper box packaging adhesive mold production.
8. Model making industry:
producing sand table models, house models, etc.
9. Produce various employee badges, door signs, and signage.
10. Seal Industry:
Seal carving of various fonts and materials
11. Shipbuilding industry:
layout of ship hold panels and engraving of signs.
12. Mechanical processing industry:
Graduated dial, wheel, and ruler engraving.
13. Wood industry:
used for relief pattern design and production.
14. Camera aperture zoom parts and scale processing.
15. Processing of complex parts such as water tank compressor valve plates.
16. Hydraulic pump shaft stator oil sealing groove tool processing.
17. Electrical discharge machining machine tool for engraving electrical boards.
18. Printing industry: used for the production of concave convex boards.
19. Manufacturing of watch case molds for watch announcements.
20. There are advantages in making pastry molds, etc.
21. Golf ball head and thread processing.
22. Inkstone head art carving and processing.
23. Motorcycle gear lever processing.
24. Bowling ball spherical engraving.
25. Carving of decorative products.
26. Fine carving of jewelry.
27. Carving of bathroom faucets.
28. Sole mold processing.
29. Cigarette carving.

Working Materials:
This machine can work all kinds of materials like marble,
Granite,
Glass,
Metal,
Aluminum,
Steel,
Plastic,
Wood,
Pvc,
Acrylic,
Solid wood etc hard materials no problem.
and other hard plastic and light metal materials for relief carving, cutting, hollowing and other processes Detailed Photos
1. Strong Air cooling system for spindle tools 7.5kw
2. Vacuum sucker with vacuum pump 7.5kw that suitable for glass and stone vacuum
3. air cooling vacuum pump 11kw with noise reducer
4. Delta servo or Leadshine true servo driver and motors total 4 sets for xyz axis
5. Dust collector 2 bags with 3.0kw power more stronger to adsorb the dust and keep environment more clean
6. Original HGR30 rail with dust cover pieces
7. Top quality FULING inverter to suppluer stable power for spindles
8. Net clean electronic control box with high quality inverter, Leadshine servo motor and drivers with transformer
9. WEIHONG NK105 /DSP A18 control system with handle with long liftime use
10. Seperate control box with fan to keep clean and cooling function
11. strong machine frame with vacuum table structure total weight more than 1000kg
12. Two rows wheels at behind of machine table more convenient to move materials on table
Optional Parts:
1. Oil mist cooling system (suggest to add if engrave on soft metal) :
2. Dust collect system single bag
3.Lock knife block:
4. Air cooling spindle 3.5kw/4.5kw/5.5kw/6kw/7.5kw with ER20-ER32 for your option
5. Servo motor drivers from Japan Yaskawa 850w
6. Syntec control with handle
7. Oil vacuum pump with noise reducer from German
8. Softare PowerMill and Artcam
Packaging & Shipping
1x Engraving machine
1x Control box
1x Parallel port cable 25pin
2x Power cable
1x Tool box and tools
3x Axis motors
1x CD of manual and software artcam/type3/ucancam etc
8x Height adjust legs
1x Dust collector
1x Dust brush
1x Dust pipe
1x Pipe supporter
15x Cutting tools
3x Tool chunk
50x seal pipe
1x Machine manual
