CNC Machining Equipment Heavy CNC Center

Product Description

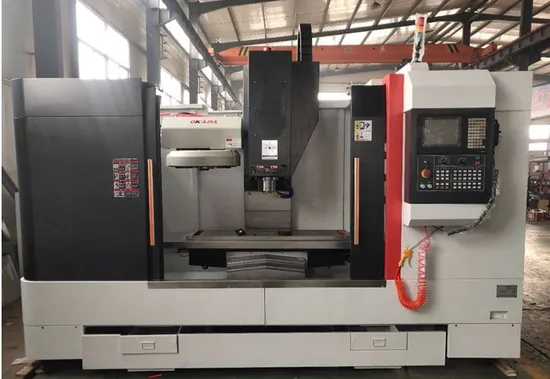

CNC Milling Drilling machine center VMC1270

Item		VMC1270
Travel	X axis	1200mm
	Y axis	700mm
	Z axis	700mm
	Spindle nose to table	100-800mm
Feed	Max. X rapid feed	24m/min
	Max. Y rapid feed	24m/min
	Max. Z rapid feed	24m/min
	Cutting feed	1-12000mm/min
Table	Table size	1300x650mm
	Max. load	700kg
	T slot	5-18
Spindle	Type	Belt
	Speed	50-8000rpm
	Spindle taper	BT40-150BT
	Main motor	11/15kw
Acuracy	Positioning Accuracy (JIS)	0.01/300mm
Machine	Size	3000x2600x2700mm
	Weight	7000kg

VMC1270 mini machine center:
Able to mill steel, copper, aluminum, wood and plastic
Taiwan spindle, Taiwan linear guideways
Complete machine: Standard with external handwheel, tri-colour light, lubrecation, coolant system.
Complete machine standard with RS232 interface
Frame is with lubrecation, without controller, without any electrial parts
Min. Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Packaging & Delivery
Packaging Details: Steel bottom plywood case
Delivery Detail: Complete machine 60days. Frame 45days
Accessories:
Complete machine is with standard accessories: 1PC tool holder, 1PC pull stud, 1set collects, 1PC spanner, 1PC direct screw driver, 1PC Philips screwdriver
Optional accessories: 1.4th axis. 2. Rotary table(price sepreated)
Power:
Please inform power voltage and current. If transfomer is needed. Price would be different.
FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.
This is our company's main product. This product has been selling well in Europe, North America, Australia and South America for more than ten years. We can adjust the details according to the different needs of our customers.
