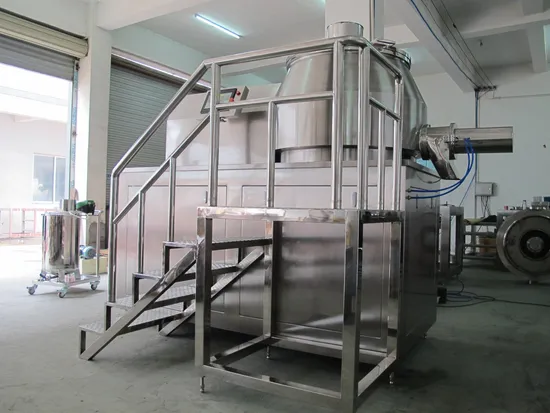

Wet Mixer Granulators Rapid Mixing Granulator Equipment High Shear Mixing Granulation Machine

Product Description

Attention:
--- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
--- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
--- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
Working Principles
In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smashed paddles
Purpose
The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.
Technical Parameters

Model	GHL-200	GHL-300
Volume	200L	300L
Working volume	60-150L	30-120kgs/batch
Output	30-75kgs/batch	Mixing:2min Granulation:7-14min/batch
Operating time	Mixing:2min Granulation:7-14min/batch	Φ0.14-Φ1.5mm(12mesh-100mesh)
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)	30-220rpm
Mixing Speed	30-260rpm	18.5kw
Mixing power	15kw	50-3000rpm
Granulation Speed	50-3000rpm	5.5kw
Granulation power	4kw	0.5m³ 0.7Mpa (prepared by buyer)
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)	Φ10mm
Inlet of cooling water and compressed air	Φ10mm	985mm
Dimension	2180×810×1950mm	2420×1060×2150mm
Weight	1350kg	1600kg

For More Model Parameters, Please Send Inquiry To Get
Features
1.It is the structure of horizontal cylinder (cone).
2.Full sealed driving shaft, to use water when cleaning.
3.Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4.Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5.Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
6.All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7.Whole operation has the strict safety precautions.
Machine details
Output
Mixing Pot
Mixing Blade Lifting System, Easy For Cleaning
Cylinder For Output
Final Product
These machines are suitable for crushing thermal sensitive material and granulating for damp material. It is less the heat and the powder dust. The sieve of stator is made of stainless steel plate. It is not easy to damage. The gap between crushing blade and sieve can be adjusted. Can treat material that is adhesive or in gum or heat or damp state. Company Introduction
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, S
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
