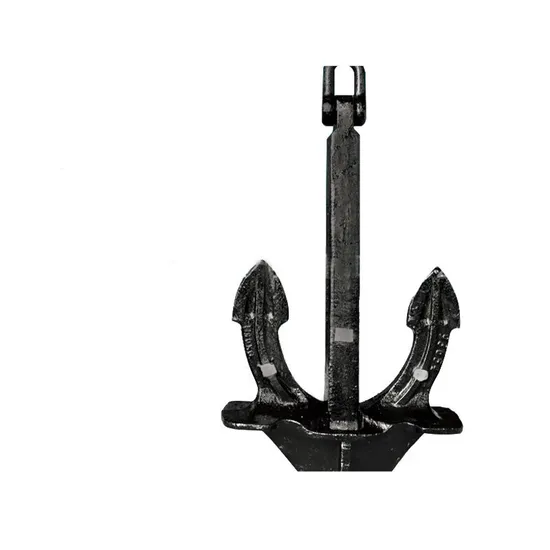

High Holding Power Black 420kg JIS Stockless Anchor with CCS for Vessel

Product Description

High Holding Power Black 420kg JIS Stockless Anchor with CCS for Vessel

Type	JIS Stockless Anchor
Accessories	Anchor Chain ,Kenter Shackle,End Shackle,Swivel Group,Type A&B Swivel Anchor,Buoy Shackle,Pear Shackle,Triangle Plate,Forlock Shackle
Size	From 180KG to 46000KG
Standard	GB/T 548-1996,
Certification	ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS...
Material	ZG230-450H,Q345C
Surface	Black Painted or Galvanised

NOMINAL WEIGHT(KG)	SIZE(mm)
	L	L1	L2	H	H1	B1
180	650	459	910	111	480	280
240	720	510	1010	122	530	310
300	770	540	1080	131	570	331
360	820	580	1150	139	610	353
420	860	610	1200	146	640	370
480	900	640	1260	153	670	387
570	950	670	1330	162	700	408
660	1000	710	1440	170	740	430
780	1060	750	1480	180	780	456
900	1110	780	1550	189	820	477
1020	1160	820	1620	197	860	500
1140	1200	850	1680	204	890	520
1290	1250	880	1750	212	920	540
1440	1300	920	1820	221	960	560
1590	1340	950	1880	228	990	580
1740	1380	980	1930	235	1020	600
1920	1430	1010	2000	243	1060	620
2100	1470	1040	2060	250	1090	640
2280	1510	1070	2110	257	1120	650
2460	1550	1100	2170	264	1150	670
2640	1590	1120	2230	270	1180	690
2850	1630	1150	2280	277	1210	700
3060	1670	1180	2340	284	1240	720
3300	1710	1210	2390	291	1270	740
3540	1750	1240	2450	298	1290	750
3780	1790	1260	2510	304	1320	770
4050	1830	1290	2560	311	1350	790
4320	1870	1320	2620	318	1380	800
4590	1910	1350	2670	325	1410	820
4890	1950	1380	2730	332	1440	840
5250	2000	1410	2800	340	1480	860
5610	2040	1440	2860	347	1510	880
6000	2090	1480	2930	355	1540	900

NOMINAL WEIGHT(KG)	SIZE(mm)
	L	L1	L2	H	H1	B1
6450	2140	1510	3000	364	1580	920
6900	2190	1550	3070	372	1620	940
7350	2240	1600	3140	380	1660	960
7800	2280	1610	3190	388	1680	980
8300	2330	1650	3260	396	1720	1000
8700	2380	1670	3320	403	1750	1020
9300	2420	1710	3390	411	1790	1040
9900	2470	1740	3460	420	1820	1060
10500	2520	1800	3530	428	1880	1090
11100	2570	1800	3600	437	1880	1090
11700	2610	1855	3650	444	1945	1130
12300	2650	1855	3710	450	1945	1130
12900	2690	1885	3870	457	1975	1170
13500	2740	1885	3840	466	1975	1170
14100	2780	1960	3890	473	2050	1200
14700	2820	1990	3950	479	2080	1210
15400	2860	2020	4000	486	2110	1230
16100	2900	2050	4060	493	2140	1250
16900	2955	2080	4130	500	2180	1270
17800	3000	2120	4200	510	2210	1290
18800	3060	2160	4280	520	2260	1320
20000	3120	2200	4370	530	2300	1340
21500	3200	2260	4480	540	2360	1380
23000	3270	2310	4580	560	2410	1410
24500	3340	2360	4680	570	2460	1440
26000	3410	2410	4770	580	2520	1470
27500	3470	2450	4860	590	2560	1490
29000	3530	2490	4940	600	2660	1550
33000	3690	2610	5170	630	2720	1590
35500	3780	2670	5290	640	2790	1630
38500	3880	2740	5430	660	2860	1670
42000	4000	2820	5600	680	2950	1720
46000	4120	2910	5770	700	3040	1770

Produce Overview Hall anchor is a commonly used type of ship anchor, known for its simple structure, easy installation, and strong applicability. A. The main difference between Type B and Type C Hall anchors lies in their size, weight, and anchor grip parameters, which are designed to accommodate ships of different tonnages and requirements. Produce structure The Hall anchor mainly consists of two flat anchor wings and one anchor rod. The design of the anchor wing enables the anchor to quickly grasp the soil or substrate after being thrown into the water, providing stable anchoring force. Anchor rods are used to connect anchor chains and anchor bodies, ensuring that the anchor can be firmly fixed on the seabed. Produce Features Strong applicability: Hall anchors are suitable for soft soil and sandy soil, and can provide stable anchoring force under these geological conditions.Simple structure: The structure of Hall anchors is relatively simple, easy to manufacture and maintain.Easy installation: Due to its structural characteristics, the installation process of Hall anchors is relatively simple and fast.High reliability: Under normal usage conditions, Hall anchors can reliably secure ships and ensure their safe berthing.
Thirty Party Certificate:
Lloyd's Rigister of Shipping (LR)
American Bureau of Shipping (ABS)
Det Norske Veritas (DNV)
Germanischer Lloyd (GL)
Bureau Veritas (BV)
Korean Register of Shipping (KR)
Nippon Kaiji Kyokai (NK)
Registro Ltaliano Navale Group (RINA)
China Classification Society (CCS)
Russian Maritime Register of Shipping (RMRS)
Indian Register of Shipping (IRS)
Croatian Register of Shipping (CSR)
Ql.Why choose Our Company?
A: We have advanced equipment, an excellent production team, strict quality control, Welcome to visit the factory to confirm
02.Can you accept a sample order?
A: Yes, It is acceptable! We can provide samples for quality inspection
Q3. Can you give me a better price?
A: First, we are a Manufacturer in China. If you have a big demand for a certain quantity, we can offer discounted prices. Please contact us to get some discounts
Q4. Which delivery methods are available?
A: By sea or air.
Q5. How can I place an order?
A: Please provide your reguirements or application and send us an order byE-mail with your detailed information, then we willsend you a PI to confrm Then,,if all information is right you can make a 30% deposit payment. Finally, we will arrange the order as soon as we receive your advance payment!
