FINCM Pressure Vessel Boiler Heat Exchanger CNC Gantry Movable High Speed Tube Plate Flange Drilling Machine

Product Description

Product Description

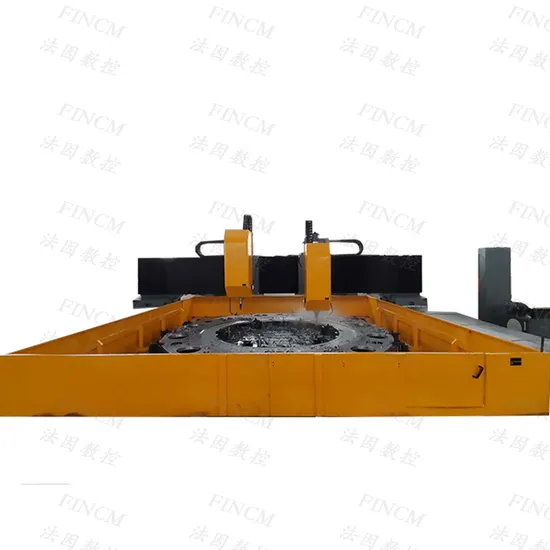

PHM5050C/2 FINCM Tubesheet Flange Fabrication CNC Gantry Movable Plate High-Speed Drilling Machine 5000mm*5000mm*250mm
PHM5050C/2 top manufacturer CNC drilling machine for steel plates .
Machine Purpose:
Mainly Drilling tube sheet plates and flanges, the drilling hole diameter is less thanφ80mm. The main function includes drilling holes, reaming, boring, tapping, chamfering, and milling. It's applicable to take both carbide drill bit and drill bit. The CNC control system's operation is convenient and easy. The machine has very high work accuracy.
Machine's Supply Range:

No.	Name	Qty.
1	Machine Frame	1 set
2	Column	1 set
3	Cross beam	1 set
4	Worktable	1 set
5	Ram-type drilling Spindle and headstock	2set
6	Hydraulic System	1 set
7	Electrical Control System	1 set
8	Centralized Lubrication System	1 set
9	Scrap Removal System	1 set
10	Cooling System	1 set
11	Pneumatic system	1 set

Machine Features:
The machine frame body and cross beam are in welded fabricated structure, after enough aging heat treatment, with very good accuracy. The work table, transversal sliding table and ram all are made from cast iron.
Two sides'dual servo driving system at X axis assures the gantry's parallel accurate movement, and the good squareness of Y axis and X axis.
The work table is made from cast iron, assures stable performance.
The Drilling spindle is rigid high precise BT50 type with inner cooling system, and easy to change tools. The spindle speed is 30~3000r/min.
At the two sides of the work table there are total two plate-chain type scrap removal device, the scrap and cooling liquid can be collected to the device, and the coolant can be recycling used.
The machine has two cooling ways - inner cooling and outside cooling, enough pressure and flow rate, and there is coolant level inspection warning components, which assures enough lubricating and cooling for the drilling tool.
The machine has automatic lubricating system, provides enough and reliable lubricating for the key movement points, such as guide rail, ball screw and roller bearings, which assures the key movable components' lifetime.
The CNC Control system is Siemens828D , with powerful function, automatic CAD-CAM programming, easy operation, automatic warning and error compensation.
The key outsourced components, such as linear roller guide rail, ball screw, servo motor and servo driver, spindle, CNC control system, hydraulic pump, valve and cooling pump, etc., all are from world famous brand, so the machine has very high reliability and stable performance.
Main technical specifications:

Item	Name	Value
Maximum Plate Size	L x W	5000×5000 mm
	Maximum Thickness	250mm(can be extended to 380mm)
Work Table	T Slot Width	28 mm(standard)
	T Slot Direction	Y Axis
	Loading Weight	3 tons/square meter
Drilling Spindle	Maximum Drilling Diameter	φ80 mm
	Drilling spindle's Rod Length vs. Hole diameter	≤10,(Crown Diamond)
	Maximum Tapping screw	M30
	RPM	30~3000 r/min
	Spindle Tape	BT50
	Spindle motor power	2×37kW
	Maximum Torque n≤750r/min	470Nm
	Distance from Spindle bottom surface to the worktable	280~780 mm (adjustable as per material thickness)
Gantry Longitudinal Movement (X Axis)	Max. Travel	5000 mm
	Movement speed along X axis	0~16m/min
	Servo motor power of X axis	2×3.3kW
Spindle Transversal Movement (Y Axis)	Max. Travel	5000mm
	Movement speed along Y axis	0~16m/min
	Servo motor power of X axis	2×2.7kW
Spindle Feeding Movement (Z Axis)	Maximum distance between two drilling headstocks	500 mm
	Feeding speed of Z axis	0~10m/min
	Servo motor power of Z axis	2×4.3kW
Positioning accuracy	X axis,Y axis	0.08mm/full travel
Repeatable positioning accuracy	X axis,Y axis	0.05mm/full travel
Hydraulic system	Hydraulic pressure/Flow rate	15MPa /22L/min
	Hydraulic pump motor power	5.5 kW
Pneumatic system	Compressed air pressure	0.5 MPa
Scrap removal and Cooling system	Scrap removal tpe	Plate chain
	Scrap removal Nos.	2
	Scrap removal speed	1m/min
	Motor Power	2×0.75kW
	Cooling way	Inner cooling + Outside cooling
	Max. Pressure	2MPa
	Max. Flow rate	2×60L/min
Electronic system	CNC control system	Siemens 828D
	CNC Axis Nos.	6
	Total power	About 110kW
Overall Dimension	L×W×H	About 9.8×8.7×4.1m
Machine weight		About 50t

Key outsourced components list:

No.	Name	Brand	Country
1	Roller linear guide rail	Hiwin/PMI	China Taiwan
2	CNC control system	Siemens	Germany
3	Feeding servo motor and servo driver	Siemens	Germany
4	Precise spindle	Spintech/Kenturn	China Taiwan
5	Hydraulic valve	Yuken/Justmark	Japan/China Taiwan
6	Oil pump	Justmark	China Taiwan
7	Automatic lubricating system	Herg	Japan
8	Button, Indicator, low voltage electronic components	ABB	Germany

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components due to any special matter.
Free Accessories list:

No.	Name	Size	Qty.
1	Optical edge finder		1 piece
2	Inner hexagon wrench		1 set
3	Tool holder and pull stud	Φ40-BT50	2 pcs
4	Tool holder and pull stud	Φ20-BT50	1 piece
5	Spare paints	--	2 kegs

Work Environment:
1) Power supply: 3 phase 5 lines 380±10%V 50±1HZ
2) Compressed air pressure: ≥0.5MPa
3) Temperature: 0-40°C
4) Humidity: ≤75%
