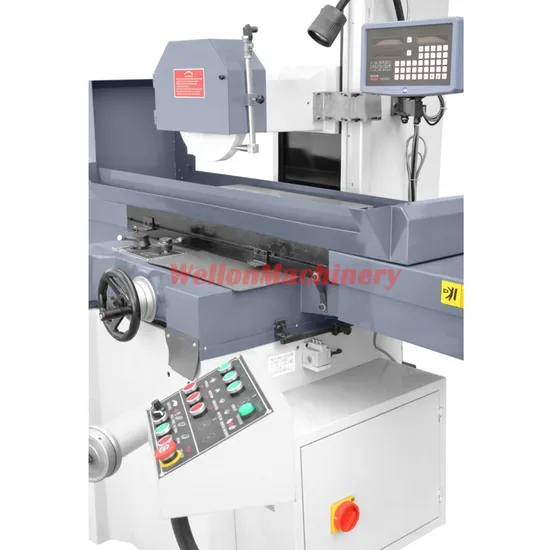

Universal Hydraulic Surface Grinding Machine for Sale MY1230

Product Description

Product Description

Universal Hydraulic Surface Grinding Machine for Sale MY1230
Product Parameters

Performence Features:
1,Compact structure and easy operate.
2,Table longitudinal movement by hydraulic.
3,Table transverse feed by automation operate or by handle.
4,Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
Technical Parameter:

Model	Units	MY1230
Table Size (L×W)	mm	750×300
Table travel	mm	780x320
Speed of working table	m/min	3-20
Distance From Spindle to table	mm	530
Table Slide way	/	Double V-type rail
V-type rail with Steel-ball	kg	250
Number of T -Slot	mm*n	14*1
Cross Feed On Handwheel	mm	0.02/Gra 4/rev
Vertical Feed On Handwheel	mm	0.01/Gra 2/rev
Wheel Size	mm	250*25*76.2
wheel Speeds	rpm	2450
Spindle Motor	kw	2.2
Hydraulic station motor	kw	2.2
Rapid Up and down Motor	w	120
Working Pressure	Mpa	4
Max.Capacity	L/min	20
Fuel tank capacity	L	80
Packing Size	mm	1960*1640*2020
Net,Gross/weight	kg	1400/1530

Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Balance stand
Leveling wedge and bolt
Wheel dresser stand
Optional accessories:
Electro magnetic chuck
Balancing stand
Cooling and dust collector
Parallel wheel dresser
Dust collector
2 axis DRO
