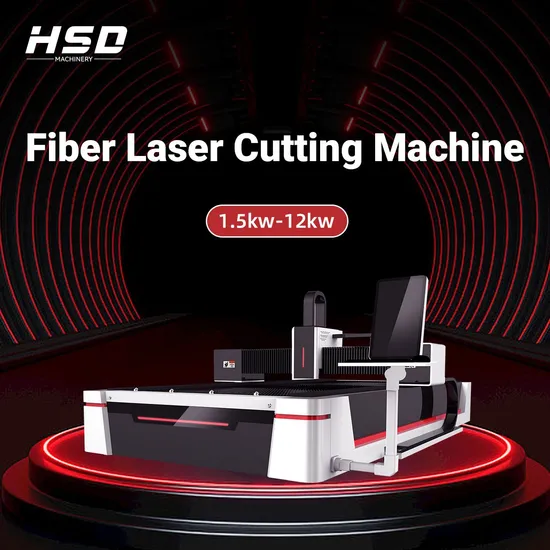

3015 Fiber Laser Cutting Machine CNC Sheet Metal Automatic 6kw

Product Description

H1530 Fiber Laser Cutting Machine CNC Sheet Metal
Product Description
1. Intelligent automatic focusing laser head Automatic focusing mode of the laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um. 2. Aircraft-grade aluminum crossbeam
Aircraft-grade aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance such as anti-twisting, anti-tilting and anti-deformation.
3. High quality thick wall carbon steel pipe welded bed
High strength machine bed is more stable and durable. After 600ºC stress relief annealing treatment, the machine bed has strong structural rigidity. The overall mechanical structure of the machine has small deformation, low vibration, ensure cutting accuracy.
4. Integrated large volume dust removal system
The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator's health and the working environment.
5. Automatic lubrication system
Automatic lubrication method saves more human labor, reduces maintenance time, and greatly improves work efficiency.
Product Features
1. High rigidity of the machine tool bed, exclusive high temperature control standard furnaces annealing treatment, can guarantee the precision of the machine tool is stable for a long time does not change.
2. Imported original fiber laser generator with good beam quality, stable performance, no reflector lens, no need to adjust the optical path, basic maintenance free, service life can reach more than 10 hours;
3. Fiber laser with high Electro-optical conversion efficiency, conversion efficiency of 30%, the power consumption can be saved greatly when working.
4. Adopts imported original guiding drive and servo motor, high precision, high speed;
5. Supported all kinds of graphic format or text instant cutting, simple operation, flexible and convenient.
6. Beautiful, smooth cutting edge,without deformation;
7. Low energy consumption, energy saving and environmental protection, low power consumption, the power consumption is VAG with the power consumption of 1/3-1/5, cutting speed of YAG is more than three times;
8. Without working gas lasers, air available for sheet cutting;
9. Fast cutting speed, low operation cost,investment recovery quickly;
Application
sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.
Parameters

Model	HM-3015
Working area	1500*3000mm
Optional Working Area	1300*2500mm, 2000*3000mm, 2000*4000mm, 2000*6000mm,..
Configuration	Specifications
Laser Generator	GW/Raycus/IPG
Laser Cutting Head	Au3tech, Raytool,
CNC Controller	Au3tech, Cypcut
Servo driver system	Delta/Yaskawa/Pansonic
Speed Reducer	Shimpo Reducer, Japan
Rack and Pinion:	Taiwan CSK/TBI/HIWIN guide rails
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Repeat PrecisionX, Y, Z Axis Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Maximum Empty Running Speed	120m/min
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Cooling System	Water Cooling
Continuous working time	24 Hours
Power requirements	380V/3 Phases /50Hz or 60Hz

Product Details Raycus/Max/IPG Laser Source
Most famous laser source brand in China.
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost.
Muitiple choice different power brand, and different power are available. The higher power , thicker cutting thickness.
Tube welded Bed The constant temperature of water chiller can keep the laser power stable,work more stable and fast
Which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the frame.
High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 10mm and weight is 2000kg.
Aluminium Gantry
High hardness Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.
Laser Head
Including: Manual Focusing and Automatic Focusing,More and more fiber laser cutting machine use automatic focusing laser head.
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.
The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Life Time
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head
Japan Yaskawa servo motor and drive
-More accurate
It realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
-Rotating speed is more faster
High speed performance, general rated speed can reach 2000~3000 rpm;
-Daptability
High strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required;
-Stable
Smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.
Samples Show
Our service
1. For whole fiber laser cutting machine, we provide 2 years warranty and lifetime after-sales service, we will provide the consumable. parts at an agency price when you need replacement.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Our engineer could support you technology to your country if necessary.
4.Our engineer could service you 24 hours online by Skype, WhatsApp, msn, QQ, or by cellphone.
5. English manual and CD video for machine using and maintaining will send to you with the machine.
