Sts Keypad Prepayment Smart 4G Three Phase Electirc Meter
| US$60.00-70.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DTSY395
Color
Grey
Transport Package
Carton Packing
Specification
5(60)A
Trademark
SANFRAN
Origin
China
HS Code
9028301300
Production Capacity
500000PCS/Month
Product Description
Three phase keypad prepaid energy meterIntroduction:

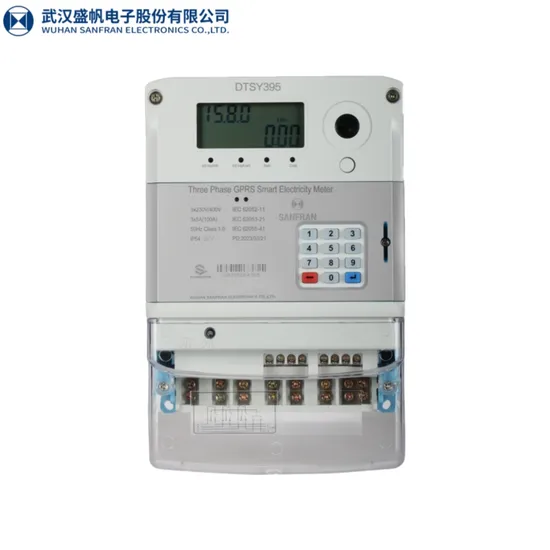

DTSY395(Z) Three phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. Built-in wireless communication modem (GPRS/3G/4G/NB-IoT/LoRa) can collect the energy data from the meter and transmit remotely directly to the server platform for energy data analysis. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:
| ★Meter recharge by inputting TOKEN | ★Utilities can set TOU price into meter on request |
| ★Ingress protection IP54 waterproof | ★Anti-tamper magnetic field protection |
| ★Up to 8 years battery life | ★MD(maximum demand measurement) |
| ★Remote connection/disconnection | ★Low credit alarm |
| ★Real-time clock | ★Overdraft collection |
| ★Check data by inputting the short code | ☆NB-IoT, 4G, GPRS, LoRa communication is optional |
| ☆Communication modem can be remotely upgraded |
Specification:
| Electrical | Nominal Voltage | 3*230V |
| Working Voltage Range | 70%~120%Un | |
| Frequency | 50-60Hz | |
| Active Energy Constant | 400imp/kWh | |
| Power Consumption in Voltage Circuit | <2W <8VA | |
| Power Consumption in Current Circuit | <1VA | |
| Operation Temperature Range | -25ºC-70ºC | |
| Storage Temperature Range | -40ºC-85ºC | |
| Electric Magnetic Compatibility | AC Insulation Strength | 4kV at 50Hz during 1min |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
| Electrostatic Discharges | Contact discharge 8kV | |
| Air discharge 16kV | ||
| Electromagnetic RF Field | 27MHz-500MHz 10V/m | |
| 100KHz-1GHz 30V/m | ||
| Fast transient burst test | 4kV | |
| Protection | Class II |
Parameters:
| Model | DTSY395(Z) |
| Current(Imax) | 3*10(100)A |
| Accuracy class | Active energy: Class 1.0 |
| Reactive energy: Class 2.0 |
LCD Display:
AMI Solution:
