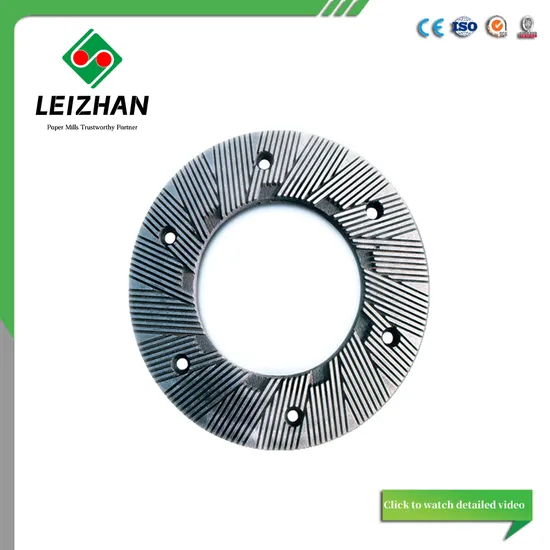

Double Disc Conical Refiner Plate for Woodworking Industry
| US$200.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZRPH
Usage
All Kinds of Paper Making
Nominal Volume(m³)
Customized
Impeller Diameter (mm)
Customized
Rotating Speed of Impeller (r /min)
Customized
Certification
CE, ISO, CCC
Condition
New
After-sales Service
Online and at Site Support
Tilt Angle of Gear Grinding
Open Hole Design
Hardness
HRC40~68 Degree
Thickness
25mm-40mm
Processing
Quenched / Polished / Sandblasted / Chrome / etc
Transport Package
Standard Seaworthy Package
Specification
Customized
Trademark
LEIZHAN
Origin
China
HS Code
84399100
Production Capacity
50000sets/Year
Product Description
Product DescriptionRefiner plate: "Three-point paper making, seven-point beating", beating is to treat the fibers in the pulp by the mechanical action method of the grinding disc tooth pattern, so that it can be decomposed, appropriately cut, and split; more importantly, the fibers absorb water during the beating. Swelling makes it have higher elasticity and plasticity and meets the requirements of paper machine production so that the produced paper can reach the expected quality index.
Detailed Photos Product Parameters Our Advantage of Refiner Plate:
1.Wide range of metallurgies developed for industry needs.
2.It can be designed according to various of versions and requirements.
3.Custom designed plates are developed in shortest time.
4.Stronger plates for longer life.
| Four series of multi-element alloy grinding disc plate | |
| HY Cut fin | It is suitable for partial free beating, and can quickly reduce the wet weight of long fibers under low power consumption, which is beneficial to improve the uniformity. |
| HY Soft fin | It is suitable for short fiber pulp, with weak cutting effect, maintaining fiber length and reducing wet weight loss. |
| HY Ease fin | It is suitable for multiple types of slurry, with strong dispersing and pumping capabilities, reducing power consumption and improving the output rate. |
| HY Broom fin | It is suitable for viscous beating and has a strong effect on fiber splitting and brooming, which is beneficial to the improvement of beating degree. |
