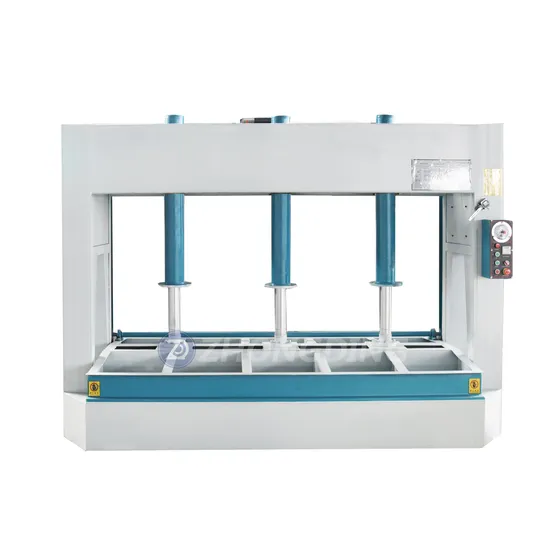

High-Quality Flat Frame Hydraulic Laminating Cold Press Machine

Product Description

Product Description
The application of hydraulic cold press is to press or combine the laminate sheets on to the plywood, doors, boards or block boards. Hydraulic cold press are widely used in the plywood industry, furniture making industries, to stick the laminate sheets on to the plywood, doors, boards or block boards. The main function of this machine is to make a instantaneous and nonstop pressure on work piece.
50 Tons industrial cold press machine is used to press furniture plate, wooden door, as well as furniture, leveling. On the other hand, it's also suitable for tracking the bonding and pre-forming of flat wood products.
It has good pressing quality, high speed and high efficiency. Therefore widely used in furniture manufacturing and sheet metal production industry. Decorative boards as well as Insulation composite board can also be applied.
If you want faster working efficiency, you can also choose our Hot Press Machine.
Detailed Photos
1. Oil Pressure System
2. Electrical Control System
3. Platen Balance Mechanism
4. Platen
5.Machine Body
1.Oil pressure system is composed of oil cylinder, oil box, oil pump motor, control valve and pressure gauge. There is hydraulic oil in the oil box, and the motor drives the oil pump to pump the oil, then the hydraulic oil is sent to the oil cylinder by connected oil tube to make the oil cylinder work. The overflow valve controls the back-pressure Which is caused by pressed hydraulic parts, to make balance function. The electromagnetism is used to keep the set pressure by the system. The pressure gauge is used to show the pressure.
2.Electricity control system is mainly composed of main motor and control circuit. The electricity circuit uses automatic circuit breaker, fuse protector and AC contactor to protect the motor of machine and electromagneticsm from overloading, short circuit ,lost of pressure and short of voltage.

3.Platen balance mechanism is mainly composed of balance lifter rack, lifter gear ,rotation axis, stable transmission gear, etc. The left and right balance rack is installed in the machine body, and two ends of rotation axis is fixed with lifter gear, and gear is put in the two ends of rotation axis to make the rotation axis run flexibly.
4.Platen is composed of up platen and down platen. The up and down platen is both welded by section and steel platen. The work surface is processed by big milling planer, to make sure the worktable smooth. The up platen is connected with the oil cylinder lever, and the oil cylinder lifting drives the platen lift. The down platen is welded to the machine pedal directly, to make the whole machine structure solid.
5.Machine body is welded by section and steel plate, with compact form and good intensity.

Product Parameters
The following chart are detail parameters and the right one press double preesure.

Model	MJ50	MJ100
Max. pressure	50T	100T
Dimension of the platen	1250*2500mm	1250*2500mm
Working speed	180mm/min	180mm/min
Total power	5.5kw	5.5kw
Stroke	1000mm	1000mm
Overall dimensions	2950*1300*2350mm	2950*1300*2350mm
Net weight	2300kg	2950kg

Here are more samples for you to choose the number of hydraulic cylinders
If you want to customizing the machine ,please feel free to contact me. Our Advantages
Fast and efficient pressing, emergency safety braking, trip limited device.The machine is also equipped with an overpressure automatic control circuit and pressure oil cut-off protection. When the oil is cut off, it will automatically stop, which can avoid the phenomenon that the machine cannot be raised after the machine is pressurized too much, causing the motor to burn out. Using this machine will greatly improve the user's product quality, the machine table is stable, the operation is simple, and the use is very convenient.
Anti-rust chrome-plated integrated oil cylinder:
Integrated oil cylinder, hollow (thick wall) plunger rod, hard chrome plated, equipped with imported sealing ring. It will not leak oil or rust after long-term use, and has excellent pressure-maintaining effect.
Based on nearly 20 years of customer feedback and production experience. The plunger rod of the cold press must be hollow, because the cold press has a large stroke and the plunger rod is long. If it is solid, it will be easily bent.
Gantry precision milling bench:
Use special gantry milling to finish the bench so that the pressure plate and the bench fit perfectly without leaving any gaps. The error is even smaller than the thickness of A4 paper.More finesse.
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications


Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .
