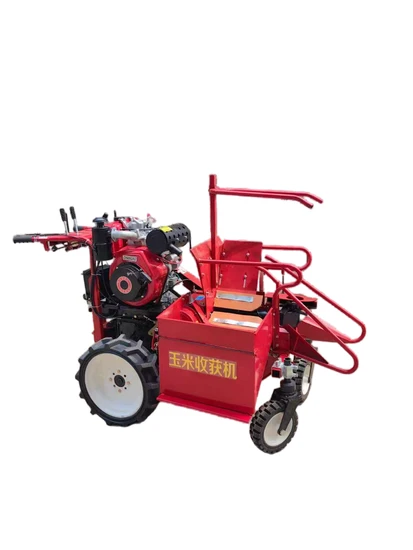

Agricultural Implements Walking Tractor One Row Mini Maize Corn Harvester Machine

Agricultural Implements Walking Tractor One Row Mini Maize Corn Harvester Machine

US$420.00-680.00 1 Piece (MOQ)

Basic Info.

Model NO.
170
Power Source
Tractor
Harvest method
Picking
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Front Type
Certification
QS, GMP, ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Item
170/177/190/173/178/186
Engine
7HP/9HP/12HP/
Transmission Type
Gear Drive /Belt Drive
Start Model
Manual/Electric Start
Working Width
500mm-1350mm
Working Depth
100-200mm
Size of Wheel
400-8/350-6
Fuel Tank
5L
Weight
120kg/132kg/150kg/164kg/178kg/182kg
Workingefficiency
0.1-0.4acre/H
Working Speed
0.3m/S
Adjustment of Handle Bar
360 Degree Horizon and 45 Degree Vertical
Power
Gasoline/Diesel
Row
1
Cutting Height
Adjustable
Transport Package
Carton Box
Specification
500-1350mm working width
Trademark
SDZD
Origin
China
HS Code
843359909
Production Capacity
800sets/Month

Product Description

Agricultural implements Walking Tractor One Row Mini Maize corn harvester Machine: This single row coHand walking Tractor front maize corn harvester with sheller pelling machinern harvester is diesel or gasoline engine power supported combine type, which can corn packing,straw crushing and return stalks to filed as fertilizer at one time.
This machine completes a row of corn picking and straw crushing. Supporting a set of spike can be removed under the filling bag, stubble height adjustable, tension clutch work safety, small turning radius of small operation. The aircraft per hour of corn corn smelting a month of direct smashing, peeling skin is not clean, ear height of 60 cm above can be harvested, the higher the straw the greater the rate of light bar.
Main Features
1. small size,adaptability,widely used in hills and mountains and other large corn harvesters can not pass the sporadic block
2. Almost the same function with large combined corn harvester, including picking, peeling, straw crushing. 3. Diesel engine or gasoline engine power, energy saving.
4. easy to install and disassemble, really a car more use. 5. flexible operation, cutting crop height can be adjusted, turning radius is small.

Product Parameters
GASOLINE MODEL
Item 170 177 190
Engine 7hp 9hp 12hp
Transmission type Gear drive/belt drive
Start model Manual/electric starter
Working width 500mm ≥960mm 1050-1350mm
Working depth ≥100mm 200mm 200mm
Size of wheel 400-8/350-6
Adjustment of handle bar 360 degree horizon and 45 degree vertical
Fuel consuption ≤10kh/ha
Fuel Tank 5L
Weight 120kg 132kg 150kg
Working efficiency o.1-0.2acre/h o.1-0.2acre/h 0.3-0.4acre/h
Working speed >0.3m/s


DIESEL MODEL
Item 173 178 186
Engine 7hp 9hp 12hp
Transmission type Gear drive
Start model Manual/electric starter
Working width 500mm ≥960mm 1050-1350mm
Working depth ≥100mm 200mm 200mm
Size of wheel 400-8/350-6
Adjustment of handle bar 360 degree horizon and 45 degree vertical
Fuel consuption ≤10kh/ha
Fuel Tank 5L
Weight 164kg 178kg 182kg
Working efficiency o.1-0.2acre/h o.1-0.2acre/h 0.3-0.4acre/h
Working speed >0.3m/s

Detailed Photos

Installation Instructions

Scope of Application

Packaging & Shipping

FAQ
Q: What's your delivery time? A: Generally, 15-20 days after receipt of deposit, but the specific time depends on order quantity.
2. Q: What are your terms of package?
A: Carton Box.
3. Q: What is your terms of payment?
A: 30% T/T as deposit, 70% before delivery.
4. Q: WHat are your terms of Trade?
A: EXW, FOB, CFR, CIF
5. Q: Can I get some samples?
A: Yes, we are honored to offer you samples.
6. Q: Do you test all your goods before delivery?
A: Yes, we will 100% test before delivery.
