High Speed Lubricant Oil PE PP Bottle Extrusion Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

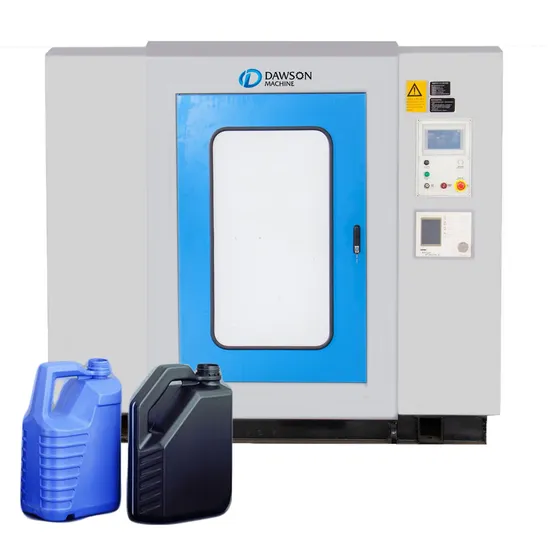

Automatic Extrusion Blow Molding Machine ABLB75II
Product Description
Automatic Extrusion Blow Molding Machine ABLB75IIu Product: 0~5 L Bottlesu Power supply: 380/220v 50/60 Hz Tri-phaseu Die head number: Single / Doubleu Suitable raw material: PE, PP, PVC, PS, PETGu Output capacity: 220~240 pcs/h (5L) / with single head450~480 pcs/h (1L) / with double head

Product Parameters

Name	Units	ABLB65II	ABLB75II
Max.product volume	L	3.5	8
Screw diameter	MM	65	75
Screw drive power	KW	18.5	22
Output of HDPE	KG/H	75	100
Oil pump drive power	KW	7.5	7.5
Clamping force	KN	65	80
Max.size of mold	MM	320×350	400×430
Template size	MM	290×320	380×420
Mold stroke	MM	150-500	170-520
Max.die diameter	MM	170	170
Size of machine	L×W×H	3.9×2.2×2.6	4.2×2.2×2.7
Weight of machine	TON	6.5	7.5

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	5L (Single head)
	Output capacity	220~240 pcs/h
	Size	3.8×2.3×2.5(M)
	Weight	4.8T
system	Specification	Parameters		Note
Plasticizion system
	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching		Brand: GuoTai (The best Gearbox supplier in China)
	Screw	∮75mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan		Cooling system available
	Plasticization	100Kg/H		HDPE
	Heating Zone	3-4 Aluminum Heater		Automatic heating
	Heating power	4KW/H
	Extrusion Motor	Three phase asynchronous motor (380V,50HZ) 30HP		Brand: Siemens
	Cooling Fan	3-4zone		Automatic cooling
Extrusion system
	Summarize	High-grade alloy steel, center feeding Avaible to change to double die head or thriple die heads
	Die head number	Single head for 5L / double head for 1L
	Center distance of die heads	130mm or 160mm for Double die head 75mm or 80mm for Four die head
	Die head	Material of the die Head:38CrMoAlA+40Cr+45# Steel Die head corn mirror degree		We provide complete set die for each sample free
	Heating	3-4 Stainless steel heating cycle With Plug type heater High quality thermocouple for temperature checking		Plug type heater more easy and convinient for changing die heads
	Heating power	3~5KW
Clamping system	Automatic Lubricant system for clamping system
	Clamping force	80KN
	Template distance	150~560mm
	Max mould size	400X450mm
	Platen moving stroke	520mm
	Lubrication	Equiped with automatic lubrication system
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)		SIEMENS or MITSUBISHI PLC System + TOUCH SCREEN
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module		SIEMENS OR MITSUBISHI MODULE
	Electrical parts	Schneider electricals & Omron relay
	Electric protection	Ampere overload, electric short circuit self-protection function
	Parison controller	JAPAN MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings (Optional : 10500 USD/ complete set if needed )
	Invertor	DELTA (TAIWAN) 380V50HZ One for main screw + another for lever line screw
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor (380V,50HZ) 7.5kw
	Oil pump	Imported double pump
	Valves	JAPAN YUKEN Hydraulic valves
	YUKEN Hydrulic valve Precision control More safe and easy to operate and maintenance Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.
	O-sealings	High quality O-sealings		We provide spare parts for each sealings
	Oil pipes	Double layer overpressure resistant
	System pressure	LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179)
	Cooling system	Separate water cooling cycle, oil cooler cooling system High quality Oil cooler
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.8Mpa
	Air displacement	0.8M3/min
	Electromagnetic valve	AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	80L/min
	Water pressure	0.3-0.6MPa

Detailed Photos


High quality mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...




Company Profile
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Feedback



After Sales Service

FAQ

Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
