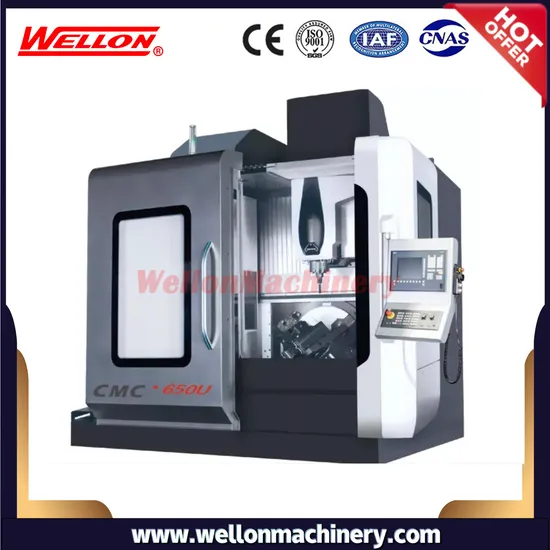

CMC650u High End 5 Axis CNC Vertical Machining Center with CE

Product Description

Product Description

Detailed Photos

Product Parameters

Feature:
CMC series five-sided machining center is mainly used for batch processing of box parts, shell parts, molds and other parts with high precision,multiple procedures, and complex shapes. It can continuously complete milling, drilling, expanding, reaming,and boring in one clamping. Tapping and precise processing of three-dimensional curved surfaces and inclined surfaces.
The processing is programmed andbatched, which shortens the production cycle and enables users to obtain good economic benefits.
This series of models is an ideal and cost-effective 5-sided machining center.
Technical Parameter:

Item/Unit	CMC-650U	Optional
Table size(mm)	650
Left/Right Stroke(X)(mm)	800 (500 left and 300 right)
Forward and backward travel(Y)(mm)	520
Up and down travel(Z)(mm)	500
Distance from spindle end to table surface(mm)	150~650
Table T-slots (number-size x pitch)	8-14x45°(Diffuser)
Spindle taper hole (type/mounting size)	BT40/ ∅150 direct connection	Electric spindle
Spindle speed	15000rpm	20000rpm
Tool magazine specification	BT40-24T garden disk	Chain type
X.Y.Z axis ball screw specification	4012	Hollow oil-cooled
Three-axis rapid traverse speed (m/min)	24, 24, 24
X.Y.Z axis line rail specification	45# Roller
X.Y.Z motor connection mode	Straight connection
Recommended main motor parameters (power kw)	9
Recommended selection of X.Y.Z axis motor parameters (torque N-m)	>22, >22, >22
Height of bed cushion(mm)	60
Table load	Horizontal 300Kg/Vertical 180Kg
Approx. net weight of the machine (excluding rotary table, tool magazine and sheet metal)	7.5t
Oil cooler	None
Hydraulic station	None

Standard accessories:
Fanuc 0i MF (1 package) controller
Manual guide 0 function
G68.2 Function
12000 rpm direct spindle taper BT40 from Taiwan TD
Spindle oil cooler
24 Tools Magazine from Taiwan DEX
Taiwan rotary table dritect driven type from Taiwan Hiwin
X,Y,Z axis linear guideway from Japan THK
X,YZ axis ball leadscrew from Japan THK
Chain type conveyor
Air conditioner in cabinet
Air gun + Water gun
Full closed cover
Closed-loop coolant system with tank and pump
Working lamp and alarm lamp
Set of tools
Coolant supply through the tool (pressure not less than 20 BAR)
3 Axis straight measuring+2 axis cycle measuring full closed loop from Heidenhain
Optional accessories: Renishaw Probe measuring system OMP60
Renishaw Tool setting system TS-27R
